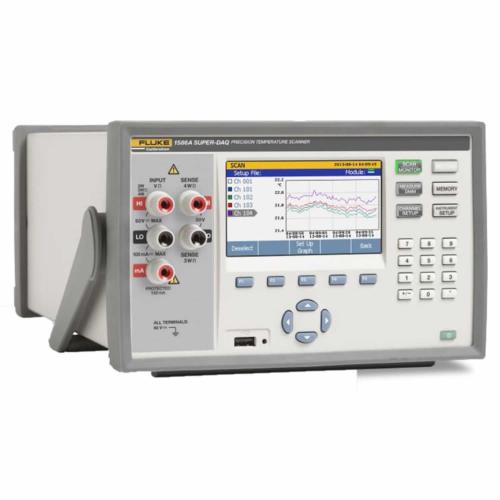

1586A Super-DAQ Temperature Scanner

The Fluke Biomedical 1586A Super-DAQ is a high-precision temperature scanner designed to measure thermocouples, PRTs, thermistors, DC voltages and currents, and electrical resistance. With up to 40 isolated universal inputs and 20 MB of internal memory, it offers a configurable scan rate of up to 10 channels per second. With four operating modes, a colour display and automated calibration capabilities, it is ideal for calibration laboratories and demanding industrial environments.



Description

Fluke Biomedical 1586A Super-DAQ: a complete solution for data measurement and acquisition

The Fluke Biomedical 1586A Super-DAQ is a data collection and temperature measurement system designed to meet the most demanding applications in terms of accuracy and versatility. Capable of measuring thermocouples, PRT sensors, thermistors, DC voltages and currents, as well as resistances, it is equally suited to industrial environments and metrology laboratories. Its modular architecture and multiple configuration options allow customisation to meet the specific needs of each user.

The device integrates up to 40 isolated universal input channels, making it an ideal solution for applications requiring a large number of measurement points. Its configurable scanning speed reaches 10 channels per second, ensuring efficient monitoring even in fast processes. The four operating modes (scan, monitor, spot measurement and digital multimeter) offer great flexibility of use, allowing easy switching from multi-channel recorder to laboratory reference thermometer.

The 1586A Super-DAQ also stands out for its data visualisation and management features. Its colour display shows real-time trend curves for up to four channels simultaneously, facilitating immediate analysis. Data can be stored in 20 MB of internal memory or on an external USB device. It can then be transferred to a computer via a USB stick or Ethernet connection for use and viewing in software such as Microsoft Excel.

To ensure optimum reliability, the system offers administrator and user profiles that protect settings and ensure test traceability. The automated calibration function allows direct control of Fluke temperature sources, such as thermostatic baths or dry ovens, simplifying sensor calibration routines. Finally, configurable alarms immediately notify the user when predefined thresholds are exceeded on monitored channels.

With its leading measurement performance, robust design and user-friendly interface, the 1586A Super-DAQ is an essential tool for professionals looking for a reliable and accurate instrument for collecting and analysing temperature and electrical signal data.

Features

  • Measurement of thermocouples, PRTs, thermistors, DC voltages and currents, and resistances
  • Operating modes: scanning, monitoring, direct measurement, digital multimeter
  • Colour display with simultaneous display of four channels
  • Application range: multi-channel data logger or laboratory reference thermometer
  • Multiple voltage ranges (±100 mV to ±50 V) and current ranges (±100 μA to ±100 mA)
  • Real-time trend detection and display
  • Multi-range power supply for worldwide compatibility (100 V, 120 V, 220 V, 240 V)
  • Totaliser function and digital inputs/outputs for automation
  • Configurable alarms per channel for threshold exceedances
  • Compatibility with Fluke temperature sources for calibration routines
  • Secure data transfer via USB or Ethernet network
  • Built-in mathematical functions (sum, difference, average, etc.)

Technical Details

  • Measurement accuracy:
    • PRT: ± 0.005 °C (with DAQ-STAQ multiplexer)
    • Thermocouples: ± 0.5 °C (with high-capacity module and internal CJC)
    • Thermistors: ± 0.002 °C
  • Number of input channels: up to 40 isolated universal inputs
  • Scanning speed: up to 10 channels/second
  • Operating temperature range: 0 °C to 50 °C
  • Storage temperature range: −20 °C to 70 °C
  • Internal memory: 20 MB for data and configuration files
  • Interfaces: USB, Ethernet (LAN), RS-232
  • Power consumption: 36 VA (peak), 24 W (average)
  • Dimensions: 150 mm (H) x 245 mm (W) x 385 mm (D)
  • Weight: 6 kg (typical configuration)
  • Compliance: CE, CSA, IEC 61010

Compatible Accessories

  • 1586-2586 High-capacity module without relay card
  • 1586-2586-KIT High-capacity module with relay card
  • 1586-2588 DAQ-STAQ Multiplexer without adapter card
  • 1586-2588-KIT DAQ-STAQ Multiplexer with adapter card and interface cable
  • 1586-2588-CBL Interface cable for DAQ-STAQ Multiplexer
  • Y1586S Single rack mounting kit (half rack)
  • Y1586D Double rack mounting kit (full rack)
  • 1586-CASE Super-DAQ carrying case (main chassis and internal modules)
  • 1586/DS-CASE Super-DAQ/DAQ-STAQ carrying case (main chassis and external module)
