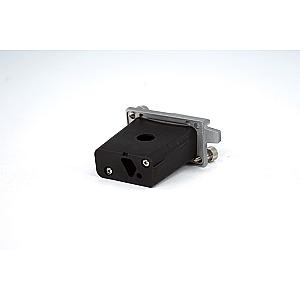

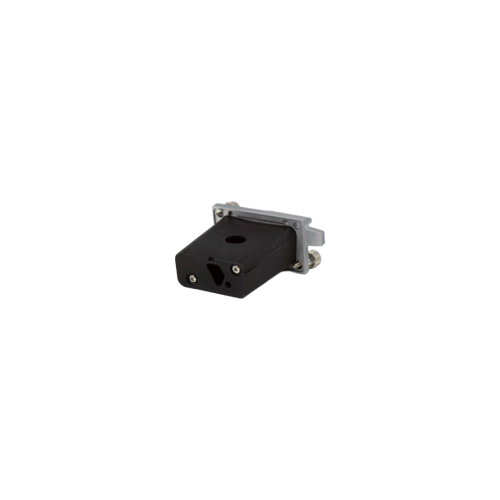

6074.0190 Dummy Cell – Structural, Preventive and Diagnostic Function for UV/Vis Detectors in Laboratories
The 6074.0190 dummy cell from Thermo Fisher Scientific is a technical component designed for use in variable wavelength detectors in the UltiMate 3000 range, in particular the VWD-3100 and VWD-3400RS models. Unlike conventional flow cells that allow liquid to pass through and measure absorbance in liquid chromatography, the 6074.0190 is not designed for optical detection. It is a "blind" cell used for mechanical and maintenance purposes.
Its main role is to protect the optical structure of the detector when no analytical cell is installed. It fits into the slot provided for the measuring cells, thus preventing contaminants from damaging the sensitive internal parts. This feature is particularly useful when the equipment is being stored, transported or left on standby for long periods of time.
In addition to its protective function, the 6074.0190 cell is recognised by the detector's internal electronics. This allows the control system, via the Chromeleon software platform, to perform certain internal diagnostic procedures. These include optical calibration checks, SmartStartup sequences and control circuit validation. Even though no analysis is possible with this component, its presence may be essential to access certain software or hardware maintenance functions.
In the laboratory, its use is therefore strictly reserved for non-analytical contexts, such as the installation phase, functional checks or preventive maintenance of an HPLC system. It is also useful when a detector is temporarily out of service, in order to preserve its internal integrity. The 6074.0190 does not allow any fluid to pass through and does not have an optical window for analysis. It must therefore never be used as a measuring cell.
The 6074.0190 cell is a passive but essential accessory, ensuring the stability, safety and proper functioning of an HPLC detector when no flow cell is yet in place.
