Air purification system CLARIFIER - Fair

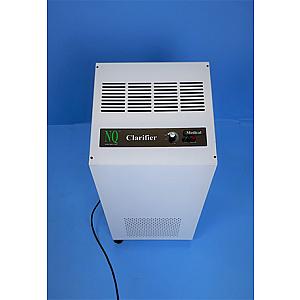

The NQ Clarifier - air clarification and portability.

This air purification system utilizes two proven processes: a four-stage mechanical filtration and ultraviolet germicidal irradiation (UVGI).

The first stage of mechanical filtration includes a 10 μm particle pre-filter, followed by a formulated activated carbon filter, then an ASHRAE-grade H14 HEPA filter (99.99% at 0.3 μm), and finally, an impregnated post-carbon filter. This combination ensures effective removal of particles, allergens, and microorganisms present in the air.

The second method, ultraviolet germicidal irradiation (UVGI), is provided by a high-output UVC bulb, delivering a total UV dose of 26,000 μWsec/cm² to inactivate microorganisms, including viruses such as Coronavirus (COVID-19).

The NQ Clarifier finds application in various fields, including medical, commercial, industrial, military, and residential. It stands out for its mobility, quick setup, autonomy, low maintenance, and cost-effectiveness, while effectively eliminating air contaminants without the use of chemicals or added materials.

• Dimensions: 710 x 380 x 360 mm
• Weight: 22 kg

• Power: 136 Watts (High Speed)
• Power Supply: 115 V - 60 Hz / 230 V - 50 Hz

• Airflow: 350 cfm - 165 l/s - 595 m³/h

• Noise Level: 45 dBA
