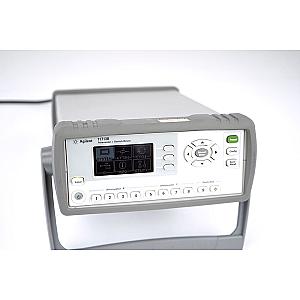

Agilent's 11713B is an attenuator/switch driver designed to automate automated test systems (ATE). It offers a user-friendly interface, multiple connectivity options (GPIB, USB, LAN), and full compatibility with programmable attenuators and switches. Ideal for office and automated test environments, it enables quick and easy control of test devices.
Agilent's 11713B is a state-of-the-art instrument designed to automate automated test systems (ATE). This attenuator/switch driver stands out for its ease of integration and use, offering an intuitive user interface that allows for quick configuration and remote control of test equipment.
The 11713B can control up to 10 SPDT switches simultaneously, or a combination of 2 programmable attenuators and 2 SPDT switches. This versatility makes it a valuable tool for test environments requiring increased flexibility. The instrument is equipped with multiple connectivity options, including GPIB, USB, and LAN, making it easy to integrate into various test systems.
One of the most notable features of the 11713B is its integrated tri-voltage power supply, which can provide voltages of 5V, 15V, and 24V. This feature is particularly useful for tests requiring variable voltages, offering full compatibility with most relays available on the market. In addition, the 11713B is compatible with a wide range of attenuators and switches, including electromechanical and solid-state models.
The 11713B is also designed for heavy-duty use, with a life cycle of over 2,000,000 switching cycles at 0.7A. It complies with the LXI Class C standard, enabling remote control and triggering via a comprehensive graphical web interface. This feature is particularly useful in high-volume production environments where reliability and accuracy are critical.
In terms of technical specifications, the 11713B offers an output voltage of 24V ± 8%, with a maximum continuous current of 1.7A. It is capable of handling a maximum load inductance of 500mH and a maximum load capacitance of 0.01µF. The response time is 100µs maximum for contact pairs 1 to 8, and 20ms maximum for contact pairs 9 and 0.
The 11713B is also equipped with front-panel push buttons and an easy-to-read LCD display, simplifying the configuration of functions such as voltage, TTL functions and IP address. In addition, it is compatible with software instrument drivers such as IVI-COM, offering programmability with popular application development environments.
The Agilent 11713B is a versatile and efficient attenuator/switch driver designed to meet the needs of modern automated test environments. With its ease of integration, multiple connectivity, broad compatibility, and reliable performance, it is an ideal choice for test and measurement professionals.
