BN Prospec Plasma Protein Analyser - Fair Condition

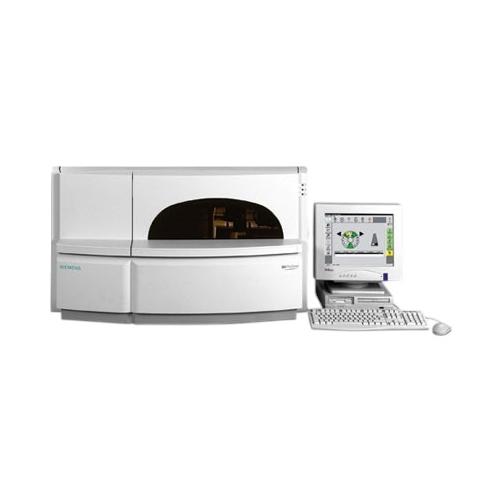

BN ProSpec System: a powerful and compact analyser for plasma protein analysis

The BN ProSpec System from Siemens is a solution for laboratories requiring reliable and efficient plasma protein analysis. Specially designed for low- and medium-volume environments, this automated analyser combines compactness, versatility and accuracy. It supports a wide range of specialised and routine parameters, meeting the needs of healthcare professionals in various fields such as cardiovascular risk assessment, kidney disease, nutritional deficiencies and anaemia.

The system is based on Siemens' proven nephelometric technology, which measures the intensity of scattered light for highly reliable results. The integration of multi-point calibration, level detection for samples and reagents, and on-board refrigerated storage ensure continuous operation and increased result security. The effective throughput of approximately 65 tests per hour and storage capacity for 1.5 hours of unattended operation optimise workflows and reduce the operational workload.

The BN ProSpec System also features a barcode reader for automatic identification of primary samples, standards, controls and reagents, enhancing traceability and safety. It offers features such as automatic sample dilution, configurable automatic repeats and secure interruption of analyses for calibration or reloading without loss of data.

The BN ProSpec test menu covers more than 64 test protocols, including parameters for screening and monitoring monoclonal gammopathies, autoimmune diseases, inflammatory disorders, chronic alcoholism and much more. Assays include kappa and lambda free light chains, cystatin C for renal function assessment, CardioPhase® hsCRP for cardiovascular risk, and CDT (% carbohydrate-deficient transferrin) for the diagnosis of alcoholism.

Thanks to the integration of Protis® IT Solution software, BN ProSpec facilitates data management and interpretation by consolidating multi-instrument results into a single patient report. This system represents a complete solution for laboratories seeking to improve productivity while ensuring accurate and reproducible results.

• Measurement principle: Nephelometry (measurement of light scattered at a fixed angle of 13-24°)
• Available methods: Over 60 programmed protocols
• Effective throughput: Approximately 65 tests/hour (depending on the mix of tests)
• Calibration: Multipoint
• Measurement temperature: 37 ± 1.5 °C
• Reagent volume: Average of 40 µL per test
• Sample dilution: From 1:1 to 1:32,000
• Reagents and controls: On-board refrigerated storage for up to 6 weeks for reagents and 1 week for controls
• Samples accepted: Standard tubes (Ø 11-16 mm, height 55-100 mm), paediatric microtubes (max. 1.5 mL)
• Identification: Automatic barcode reader (2/5 interleaved, Codabar, Code 39, Code 93, Code 128)
• Dimensions (analyser): 109.2 x 81.3 x 63.5 cm (W x H x D)
• Weight (analyser): 115.2 kg
• Light source: High-performance infrared LED (840 ± 25 nm)
• Power supply: 117–127 V / 207–253 V (50/60 Hz), consumption <400 VA in operation
