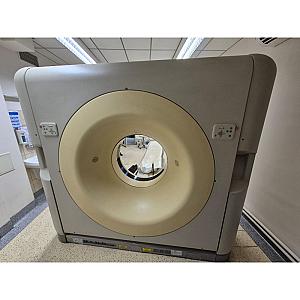

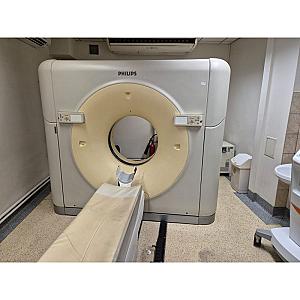

Brilliance CT 16-slice Scanner - Good Condition 2009

Medical Specialties: Radiology

 The Philips Brilliance CT 16-slice CT scanner is a high-performance imaging system designed for routine examinations, cardiopulmonary imaging and applications such as virtual colonoscopy. It offers exceptional image quality, fast reconstruction and automated tools to optimise workflows while limiting radiation dose. With its DoseWise technology, compatibility with a wide range of clinical applications and flexible configuration, this scanner meets the needs of healthcare facilities seeking performance, reliability and safety for their patients.



Offer Details

Options :

YOM: 2009 Tube YOM: 2022 Scan Seconds: 587 149

Description

Philips Brilliance CT 16-slice: The versatile scanner for accurate diagnosis

The Philips Brilliance CT 16-slice is a multi-slice computed tomography scanner that combines speed, reliability and exceptional image quality. Designed to meet a wide range of clinical requirements, it can be used for routine examinations as well as for exploring sensitive anatomical areas such as the heart, lungs and colon. With its advanced reconstruction, dose modulation and automation technologies, the Brilliance CT 16-slice optimises workflow and improves diagnostic accuracy while ensuring optimal patient comfort.

With a modular configuration, it is available with a 48 kW generator and a 5.0 MHU tube or a more powerful configuration with a 60 kW generator and an 8.0 MHU tube. This flexibility allows it to be perfectly adapted to the clinical needs and budgetary constraints of healthcare facilities. The system supports rotation speeds of 0.4 seconds for fast coverage, reducing motion artefacts, especially in uncooperative or emergency patients.

The Brilliance CT 16-slice also incorporates Philips' DoseWise technology, a set of intelligent dose management solutions. This approach includes dynamic dose modulation in all planes, automatic adjustment of the current (mA) according to the scanned area, and specifically optimised paediatric protocols. This enables high-quality examinations while minimising patient radiation exposure.

In terms of functionality, the scanner features an intuitive console, the Brilliance Workspace, which can be enhanced with extended or remote platforms. It supports a wide range of clinical applications in cardiac, pulmonary, abdominal and neurological imaging. Its full DICOM compatibility and scalable network infrastructure make it a perfectly integrated tool in the digital hospital ecosystem.

Finally, this scanner comes with a high-capacity carbon fibre floating table, multiple accessories for optimal patient positioning, and a multilingual voice interface to improve communication. The Brilliance CT 16-slice thus stands out as a strategic choice for facilities seeking to combine clinical excellence, dose control and operational efficiency.

Features

  • 16-channel multi-slice imaging system with fast acquisition and high resolution
  • Integrated DoseWise technology for intelligent dose modulation (ACS, D-DOM, Z-DOM)
  • Intuitive Brilliance Workspace console with options (MPR, MIP, 3D, volume rendering)
  • Ultra-fast image reconstruction with RapidView up to 20 frames per second (optional)
  • Adaptive reconstructions and COBRA for accurate 3D rendering in spiral mode
  • Multilingual AutoVoice interface to guide the patient before, during and after the examination
  • Full support for DICOM 3.0 protocols with integration into IHE workflows
  • Compatible with a wide range of clinical applications: virtual colonoscopy, cardiac angio-CT, cerebral perfusion, endoscopic CT
  • Specific features for cardiac imaging: ECG gating, Heartbeat-CS, CV Toolkit
  • Extensive work platforms and remote access with Brilliance Workspace Portal

Technical Details

  • X-ray tube: 5.0 MHU / 48 kW or 8.0 MHU / 60 kW
  • Voltage range: 90, 120, 140 kVp
  • Tube current: 20 to 500 mA (in 1 mA steps)
  • Rotation speed: 0.4 to 2 seconds (360°) / 0.28 to 0.33 seconds (partial 240°)
  • Gantry opening diameter: 700 mm
  • Focus-detector distance: 1040 mm
  • Focus-isocentre distance: 570 mm
  • Vertical range of the patient table: 578 to 1028 mm (1 mm increments)
  • Manual longitudinal travel: 1900 mm
  • Scannable range: 1750 mm
  • Z positioning accuracy: ± 0.25 mm
  • Longitudinal speed: 0.5 to 100 mm/s
  • Max. table load capacity: 204 kg (standard) / 295 kg (with bariatric support)
  • Spatial resolution: up to 24 lp/cm (ultra-high resolution mode)
  • Contrast resolution: 4 mm at 0.3% at 120 kVp, 250 mAs
  • Slice thickness (spiral): 0.65 to 7.5 mm
  • Slice thickness (axial): 0.6 to 12 mm
  • Field of view (FOV): 250 mm and 500 mm
  • Gantry dimensions (W x D x H): 239 cm x 94 cm x 203 cm
  • Gantry weight: 1896 kg

Compatible Accessories

  • Bariatric support (reinforced table with a load capacity of up to 295 kg)
  • CT fluoroscopy package (near real-time guidance up to 8 images/s, with foot pedal and remote monitor)
  • Continuous CT (CCT) for interventional procedures with axial exposure limited to 240°
  • Pulmonary Toolkit Oncology kit with retrospective spiral acquisition (4D CT) for tumour monitoring and respiratory cycle visualisation
  • Paediatric/infant cradle (secure positioning for young patients)
    Dedicated interventional table with specific controls
