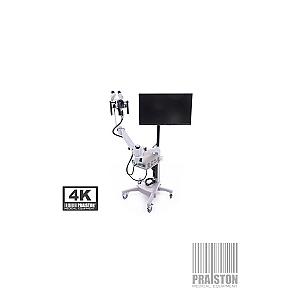

OCS-500 Colposcope: Refined Optical Performance and Integrated Hysteroscopy for Efficient Office Gynecology

The OCS-500 Colposcope represents the pinnacle of excellence in gynecological medical equipment, offering advanced optical performance, convenient single-handed operation, and the judicious integration of colposcopy and hysteroscopy into a single system. Designed to meet the high demands of office gynecology, this device combines superior image quality, extended magnification, and easy maneuverability, making it the key tool for more efficient gynecological practice.

One distinctive feature of the OCS-500 is its refined optical performance. Instead of moving the colposcope body, it utilizes an adjustable optical focusing system, providing sharp images within a working distance of 220 to 350 mm. This approach eliminates cumbersome adjustments and allows for a more precise and comfortable examination for both the healthcare professional and the patient.

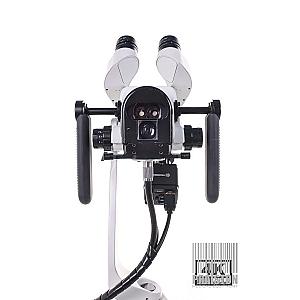

The single-handed operation of the colposcope is an innovative feature that enhances ergonomics and ease of use. Multiple control buttons are grouped nearby, enabling the adjustment of the field of view, zoom, and focus with just one hand, whether using a left or right grip. This ergonomic design promotes smoother device handling, reducing fatigue, and improving overall examination efficiency.

A major advantage of the OCS-500 is its ability to perform both colposcopy and hysteroscopy within the same system. Thanks to its optional video system and light source, the colposcope also facilitates hysteroscopy. The adoption of an eyepiece mount allows a quick and seamless transition between colposcopy and hysteroscopy, offering increased versatility and saving valuable time during medical procedures.

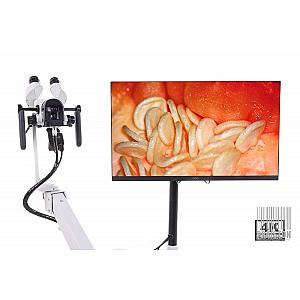

Digital documentation is a modern feature integrated into the OCS-500. In addition to digitally recording colposcopic images, it also enables the digital recording of hysteroscopic images using a digital camera. These recorded images, stored on SD memory cards, can be quickly printed using a digital color photo printer, providing a convenient option for medical record-keeping and communication with other healthcare professionals.

Magnification ranges from 2.7x to 23.4x, combined with the ability to precisely focus within a range of 220 to 350 mm, allowing for detailed visualization of anatomical structures. Compatibility with various video systems, such as the Olympus OTV-S7V VISERA Endoscopic Camera System and OTV-SC video systems, as well as with the CLV-S40/S45 VISERA Xenon Light Source and CLH-SC Halogen Light Source, offers maximum flexibility for healthcare professionals.

The OCS-500 is designed with special attention to ease of use. Its optical focusing system uses a manual drive system by knob rotation, offering continuous zoom without steps for precise adjustment. Control buttons are ergonomically arranged for single-handed operation, a significant advantage in a medical environment where efficiency and accuracy are crucial.

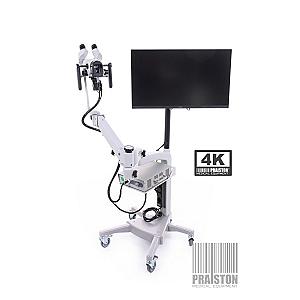

The floorstand design ensures the stability of the OCS-500 during procedures, with a spring-balancing system to easily adjust the balance between 4 and 7 kg. Vertical arm movement and a 270° rotation offer maximum flexibility to position the device according to examination needs. The tiltable binocular tube, inclined 10° upward and 30° downward relative to the horizontal observation optical axis, provides optimal visual comfort for practitioners.

The operating conditions of the OCS-500 are also suitable for standard medical use, with an air temperature range of 10 to 40 °C (50 to 104 °F). The compact dimensions of 23.5" x 55" (60 cm x 140 cm) ensure easy integration into the medical environment without compromising stability or performance.

The OCS-500 Colposcope represents a comprehensive solution for healthcare professionals engaged in office gynecology. Its advanced features, ergonomic design, versatility, and extended warranty make it a wise choice for those seeking a high-quality, reliable, and efficient colposcope. Whether for colposcopy or hysteroscopy, the OCS-500 excels in providing sharp and detailed images, enabling practitioners to deliver superior quality care to their patients.

• Operating Temperature Range: 10 to 40 °C (50 to 104 °F).
• Dimensions: 23.5" (Pedestal Base) x 55" (Overall Height) (60 cm x 140 cm).
• Eyepiece:Magnification: 10x.
• Field Number: 22.
• Zoom:Drive System: Manual Drive by Knob Rotation.
• Zoom Ratio: 1:6.
• Focusing:Focus System: Adjustable Focal Length.
• Drive System: Manual Drive by Knob Rotation.
• Focus Adjustment Range: 220 - 350 mm.
• Illumination:System: Light Guide.
• Filter: Detachable Green Filter.
• Magnifications:WD220: 3.7 - 23.4X.
• WD300: 3.0 - 18.8X.
• WD350: 2.7 - 16.9X.
• Field of View:WD220: 58.5 - 9.3 mm.
• WD300: 73.1 - 11.6 mm.
• WD350: 82.4 - 13.1 mm.
• Floorstand:Support System: Floorstand.
• Balancing System: Pantographic Arm Balancing using Spring.
• Balance Adjustment Range: 4 - 7 kg.
• Balance Adjustment: Handle Adjusted.
• Binocular Tube Tilt: 10° upward and 30° downward relative to the horizontal observation optical axis.
• Vertical Arm Movement Range: 300 mm.
• Arm Rotation Range: 270°.
