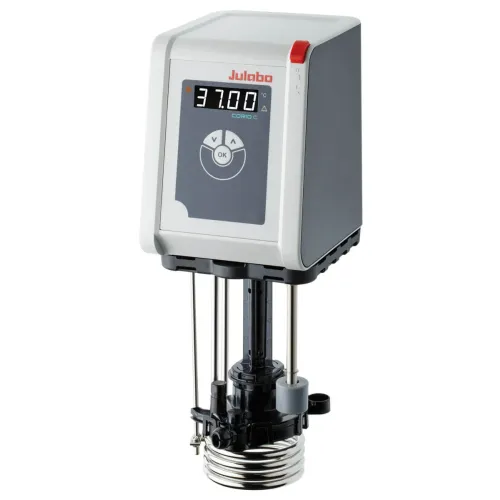

Precise and secure temperature control with the CORIO C
The JULABO CORIO C is a modern immersion circulator designed for applications requiring reliable and uniform heating in open baths. This device integrates perfectly into laboratory and industrial environments thanks to its compact design and high performance.
The CORIO C can be used with various bath tanks up to a capacity of 30 litres. It is capable of operating in a temperature range from +20 °C to +100 °C, ensuring stability of ±0.03 °C and a resolution of 0.01 °C. These features make the CORIO C an ideal tool for temperature-sensitive applications.
Equipped with a digital PID control system, the circulator allows precise adjustment of the setpoint via digital control. The user can adjust the temperature sensor (ATC) by single-point adjustment, ensuring optimum accuracy within the bath. A timer function also allows the duration of temperature control applications to be programmed up to 999 minutes.
The device is equipped with a bright LED display that provides information on the system status, current temperatures and alarm or warning messages. In the event of a malfunction or critical thresholds being reached, the CORIO C triggers a visual and audible alarm to alert the user.
Safety is a key feature of this circulator. It includes protection against overheating and low fluid levels. If the difference between the working temperature and the safety temperature exceeds 20 K, an alarm is triggered. Similarly, a fluid level sensor switches off the heating and pump if the level is too low, preventing damage to the system.
From a hardware perspective, the components in contact with the fluid are made of highly corrosion-resistant materials: high-quality stainless steel (1.4301, 1.4404/316L, 1.4571), PPS and FPM/FKM. The CORIO C is only compatible with water with an electrical conductivity of 0.1 to 50 μS, meeting strict quality criteria to prevent damage.
The CORIO C is easy to install and commission: simply connect it to a mains power supply (100–115 V or 230 V) and immerse it in the bath filled with water. An on/off switch allows immediate control of the device. The CORIO C can also be mounted on a bridge for transparent baths.
In terms of dimensions, the CORIO C measures 13.2 × 16.0 × 36.2 cm, with an immersion depth of 16.6 cm and a light weight of 1.9 kg. It offers a pump flow rate of 6 l/min with a pressure of 0.1 bar, suitable for fluids with a maximum viscosity of 1 cSt.
This circulator is not only powerful but also easy to maintain. It allows for simple cleaning and draining and is equipped with a detachable power cord for easy technical servicing. The CORIO C can be safely stored in a dry, dust-free and frost-free place after being thoroughly cleaned and dried.
