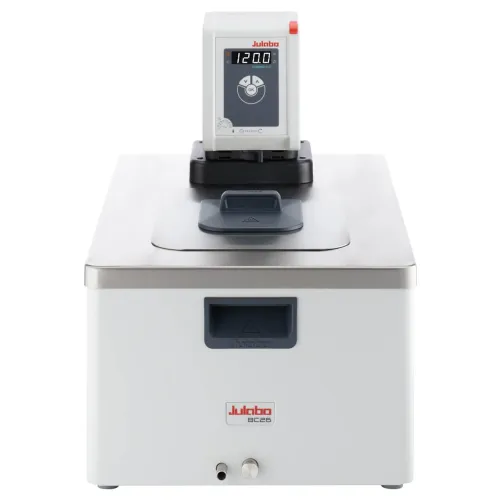

Julabo CORIO CD-BC26 heating circulator – Thermal precision and reliability for demanding laboratories
The Julabo CORIO CD-BC26 is a heating circulator designed to meet the varied needs of modern laboratories. It enables precise temperature control in a temperature range from +20 °C to +150 °C, with remarkable stability of ±0.03 °C. This model is suitable for both internal and external applications, thanks to its immersion pump with pressure function and its easy-to-access tilt lever located under the display. This flexibility allows users to quickly switch between circulation modes without tools or disassembly.
The bath is made of high-quality stainless steel, ensuring excellent durability and corrosion resistance. It is equipped with an integrated lid that limits evaporation and protects the bath fluid. The filling volume varies between 19 and 26 litres, making it suitable for a wide range of thermal applications. The integrated drain valve allows for quick and clean drainage of fluids, simplifying maintenance and reducing the risk of spillage.
Temperature control and integrated safety
The CORIO CD-BC26 incorporates a PID1 control system, ensuring fine and stable temperature regulation. It is also equipped with ATC (Absolute Temperature Calibration) for single-point calibration and increased accuracy. The bright white LED display offers excellent readability even from a distance, and the display resolution can be adjusted between 0.01 and 0.1 °C according to user requirements.
For applications close to or below ambient temperature, the circulator has an integrated cooling coil for effective counter-cooling. An optical and audible alarm system alerts the user in the event of low liquid levels, providing additional safety and preventing the device from shutting down suddenly. The integrated timer, adjustable from 0 to 999 minutes, allows heating cycles to be programmed with automatic shut-off, which is particularly useful for repetitive protocols or long experiment times.
The circulator is IP21 rated, ensuring protection against vertical water drops, and meets classification III (FL), guaranteeing safety in accordance with laboratory standards. The power plug is lockable, preventing accidental disconnection and enhancing process safety.
Connectivity, ergonomics and Julabo quality
The CORIO CD-BC26 is equipped with a USB interface, enabling remote control and integration into digital laboratory management systems. This connectivity facilitates process automation and real-time monitoring of thermal parameters. The angled pump connections (M16x1) make it easy to connect hoses, and two barb connectors (8/12 mm) are supplied with the unit.
Ergonomics is at the heart of the CORIO CD-BC26's design. Front and rear handles allow for easy movement of the device, while rubber feet ensure optimal stability on work surfaces. The design of the lid and ventilation system limits condensation, protecting internal components and samples.
The Julabo CORIO CD-BC26 is a high-end heating circulator that combines precision, safety, ergonomics and connectivity. It is an ideal solution for laboratories looking for reliable and flexible temperature control, with a design that makes everyday work easier.
