CORIO CD-BT19 Bath Circulator - Brand New

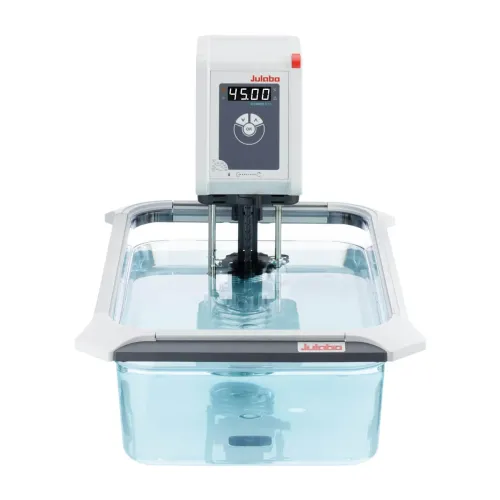

Julabo CORIO CD-BT19 Heating Circulator: Thermal Precision for Laboratories

The Julabo CORIO CD-BT19 is an open bath heating circulator designed for internal laboratory applications requiring reliable and precise temperature control. Featuring a transparent polycarbonate tank, it allows direct viewing of the fluid while ensuring excellent insulation. Its temperature range of +20 °C to +100 °C and stability of ±0.03 °C make it ideal for demanding protocols. Thanks to its PID1 system, temperature control is optimised to guarantee reproducible results. The device is also equipped with a USB interface for remote control, facilitating its integration into automated environments.

Features of the CORIO CD-BT19: Safety, Connectivity and Ergonomics

The CORIO CD-BT19 stands out with its bright white LED display, which is easy to read even from a distance, and its intuitive front controls. Switching between internal and external circulation is easy via a lever located below the display. Its immersion pump provides a flow rate of 16 to 17 l/min and a pressure of 4.8, ensuring efficient fluid circulation. The integrated safety system includes an optical and audible alarm in case of low liquid level, with automatic shutdown to prevent damage. The lockable power connector enhances process safety, while the integrated timer (0 to 999 minutes) allows precise cycle management.

Accessories and Compatibility of the CORIO CD-BT19: A Flexible and Scalable Solution

Manufactured in Germany, the CORIO CD-BT19 reflects Julabo's commitment to quality and sustainability. It complies with DIN 12876-1 Class III (FL), making it suitable for flammable liquids. Its compact design (38 x 58 x 38 cm) and rubber feet ensure optimum stability on the work surface. Accessories such as the bath cover, cooling coil or JULABO immersion chiller expand the range of applications. Thanks to its high-quality components (platinum sensors, reliable motor, CAN-Bus communication), the CORIO CD-BT19 is a strategic choice for laboratories looking for performance, safety and longevity.

• Working temperature range: +20 °C to +100 °C
• Temperature stability: ±0.03 °C
• Filling volume: 14 to 19 litres
• Tank: Transparent polycarbonate
• Dimensions (W x D x H): 38 x 58 x 38 cm
• Weight: 8 kg (17.6 lbs)
• Digital interface: USB
• Pump type: Immersion pump
• Pump function: Pressure
• Pump flow rate: 16 to 17 l/min
• Pump pressure: 4.8
• Heating power: 1 to 2 kW depending on version
• Maximum viscosity: 50 cST
• IP code: IP21
• Classification: Class III (FL) according to DIN 12876-1
• Temperature calibration: Absolute 1-point calibration (ATC)
• Pump connectors: M16x1 male
• Barb fittings: 8/12 mm
• Temperature display: LED
• Display resolution: 0.01 to 0.1 °C
• Temperature setting: Keypad
• Permissible ambient temperature: +5 °C to +40 °C
