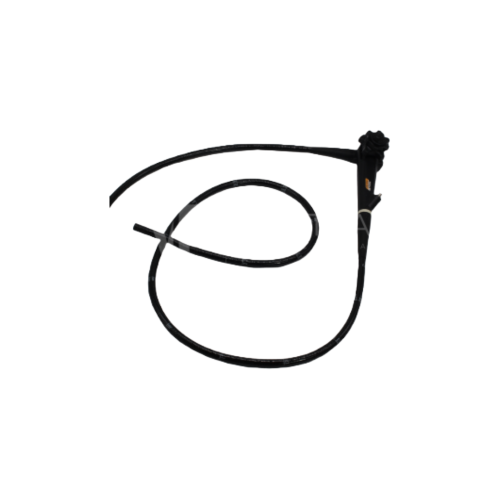

EC38-i10M2: High-Definition Visualisation and Optimal Control for Precision Colonoscopy
The EC38-i10M2 colonoscope is part of Pentax Medical's i10 series, designed to meet the demands of professionals looking for a high-performance, reliable device. Equipped with a latest-generation megapixel CCD sensor, it captures HD+ images with remarkable clarity. This increased definition, combined with a 140° field of view, provides a wide and detailed view of the colonic structures, facilitating the detection and analysis of mucosal abnormalities.
Thanks to Close Focus technology, the endoscope allows close-up exploration without loss of sharpness, which is essential for identifying suspicious lesions. The 13.2 mm diameter insertion tube, coupled with a 3.8 mm working channel, offers an ideal compromise between robustness, suction capacity and compatibility with standard therapeutic instruments. The integrated Water Jet system further enhances this capability by ensuring effective cleaning of the surgical field.
The graduated flexibility of the insertion tube (GDF) improves patient comfort while facilitating navigation in the colonic segments. This results in better control of the distal tip movement, thanks in particular to deflection angles of 180° up/down and 160° right/left. This range maximises accessibility to difficult-to-reach areas while reducing the need for complex manoeuvres.
In terms of ergonomics, the control handle design has been refined for prolonged use without fatigue. Its light weight and intuitive grip allow for greater precision during therapeutic procedures. The EC38-i10M2 model is particularly suitable for clinical environments requiring maximum efficiency in detection and treatment, while maintaining a high level of comfort for both the practitioner and the patient.
Used in diagnostic or interventional endoscopy, this model is a major asset for gastroenterology departments seeking to combine performance, durability and image quality in a single instrument designed for everyday challenges.
