Echograph AFFINITI 70 - Good 2015

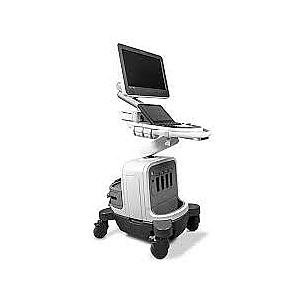

Philips AFFINITI 70: The Ultrasound System of Choice for Accurate and Efficient Diagnosis

The Philips Affiniti 70 Echograph, with TrueVue and TouchVue interface, introduces a revolutionary approach to visualizing fetal and gynecological anatomy, offering unrivalled realism and detail.

At the heart of TrueVue's capabilities is its innovative internal light source, which provides customizable illumination in the 3D volume. This advanced feature allows clinicians to adjust light and shadows, revealing subtle anatomical details impossible to achieve with traditional 3D rendering techniques. Whether exploring complex fetal structures or gynecological anatomy, TrueVue offers exceptional clarity and insight.

What's more, the GlassVue function offers an early and transparent view of fetal anatomy, going beyond the limits of conventional ultrasound. This cutting-edge tool penetrates beyond the surface to precisely reveal bones, organs and internal structures. Users have total control over transparency within the 3D volume, enhancing diagnostic accuracy and confidence.

With TrueVue, users can manipulate a moving light source to illuminate 3D volumes internally or externally, further enhancing visualization. In addition, aRevealA.I., an advanced feature of Philips AIUS, streamlines the imaging process by removing superfluous information, enabling clinicians to quickly and easily reveal the fetal face for a complete assessment.

The aBiometry AssistA.I. simplifies obstetrical examinations by automatically placing measurement cursors on fetal structures, reducing conventional measurement steps and expediting report generation. Real-time iSCAN ensures exceptional image quality in 2D, 3D, or 4D by continuously optimizing gain and TGC settings. SmartExam guided workflow further enhances efficiency by automatically planning and processing application protocols, reducing exam time by up to 50%.

Moreover, the Affiniti 70 offers specialized protocols for specialty exams such as trisomy 13 and 21, enhancing diagnostic capabilities in obstetrics and gynecology. The Tilt feature of the 3D9-3v transducer provides lateral steering of the 2D image plane, maximizing scanning versatility without manual adjustments.

Equipped with the eL18-4 transducer featuring PureWave crystal technology, this system delivers superb detail resolution and penetration, crucial for obstetrical and gynecological examinations. MicroFlow Imaging on the eL18-4 detects low flow, low velocity blood flow with high resolution and minimal artifacts, overcoming technical barriers associated with conventional methods.

Specifications

Dimensions and Weight

Height: 142.2-162.6 cm

Width: 57.2 cm

Depth: 98.3 cm

Weight: 184.4lbs (83.5kg)

General

Monitor (inch): 21.5"

Tilt/Rotate Adjustable Monitor: Yes

Image Size Resolution: 1024 x 768

Touch Screen (Inch): 12"

Trackball or Trackpad: Trackball

CP Back-Lighting: Yes

Probe Ports: 4

Battery: 40min

General Continued

Boot-Up Time: 110sec

Sleep Mode (Quick Start): 20sec

Maximum Depth of Field: 30cm

Minimum Depth of Field: 2cm

Cart (HCU): No

Independent Steer & Lockable Wheels: Yes

Connectivity

DICOM 3.0

DICOM SR_Cardiac

DICOM SR_Vascular

DICOM SR_OB/GYN

JPEG, WMV, & AVI

USB

HDD/SDD: 512GB

DVD/CD RW

Wireless LAN
