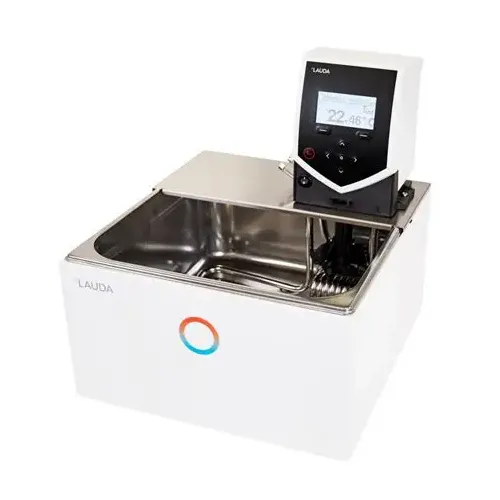

ECO E 10 G Thermostatic Bath - Brand New

The LAUDA ECO E 10 G is a high-performance thermostatic bath designed to provide precise and reliable temperature control. Featuring microprocessor technology, it combines user-friendliness, safety and flexibility to meet the needs of demanding professional environments.



Offer Details

Options :

LAUDA ECO E 10 G Wärmethermostat 230 V; 50/6

The Offer Details are provided by the seller and automatically translated.

Description

LAUDA ECO E 10 G heating thermostat: Precision thermostat for demanding laboratory applications

The LAUDA ECO E 10 G is much more than just a thermostatic bath: it is a sophisticated temperature control tool designed for laboratories, research centres and industrial environments where precision and safety are paramount. With its wide temperature range from 20 to 200 °C, it is suitable for a wide variety of applications, from material testing and chemical reactions to instrument calibration.

Its colour TFT display allows simultaneous viewing of actual and set values, as well as a graphical representation of the temperature profile. The user interface is intuitive, with clear language navigation and ergonomic control keys, including a special Tmax key for overheating protection.

The fully electronic PID control system guarantees exceptional temperature stability of ±0.01 K. The integrated Vario pump offers six adjustable performance levels, allowing precise adjustment of the flow rate between internal and external circulation, even during operation. This contactless control with the bath ensures safe and efficient handling.

The LAUDA ECO E 10 G is also designed to be upgradeable: it can be equipped with additional interface modules (analogue, contact, RS 232/485, Profibus, Ethernet-USB) and a Pt 100/LiBus module for external control and remote control via console. Its integrated programmer allows up to 150 temperature/time segments to be defined, divided into five separate programmes.

The stainless steel tank, equipped with a drain valve and a standard cooling coil, guarantees optimum durability and simplified maintenance. Compact and robust, the device fits easily into any workspace thanks to its compact dimensions and light weight of 9 kg.

The LAUDA ECO E 10 G is an essential ally for any application requiring rigorous, secure and customisable temperature control.

Features

  • Colour TFT display with simultaneous display of actual and set values
  • User-friendly navigation in plain language
  • Control via slider and soft keys
  • Tmax button for overheating protection
  • Electronic PID controller for optimum thermal stability
  • Safety class III for flammable and non-flammable liquids
  • Vario pump with 6 adjustable performance levels
  • Internal/external flow control without contact with the bath
  • Standard USB interface
  • Programmer with 150 temperature/time segments divided into 5 programmes
  • Stainless steel tank with drain valve
  • Integrated cooling coil
  • Upgradable with interface modules and Pt 100/LiBus module

Technical Details

  • Operating temperature range: 20 to 200 °C
  • Ambient temperature range: 5 to 40 °C
  • Temperature stability: ±0.01 K
  • Max. heating power: 2.6 kW
  • Max. power consumption: 2.7 kW
  • Max. current: 12 A
  • Max. pump pressure: 0.6 bar
  • Max. pump flow rate (pressure): 22 L/min
  • Min./max. bath volume: 7.5 / 11.0 L
  • Tank dimensions (W x D x H): 300 x 190 x 150 mm
  • Overall dimensions (W x D x H): 331 x 361 x 376 mm
  • Weight: 9 kg
  • Power supply: 230 V; 50/60 Hz

Compatible Accessories

  • Interface modules: analogue, contact, RS 232/485, Profibus, Ethernet-USB
  • Pt 100/LiBus module: for external control and remote control
  • Control console: for remote control
  • USB cable: for standard connection
  • Maintenance kit: for regular maintenance of the tank and internal components
