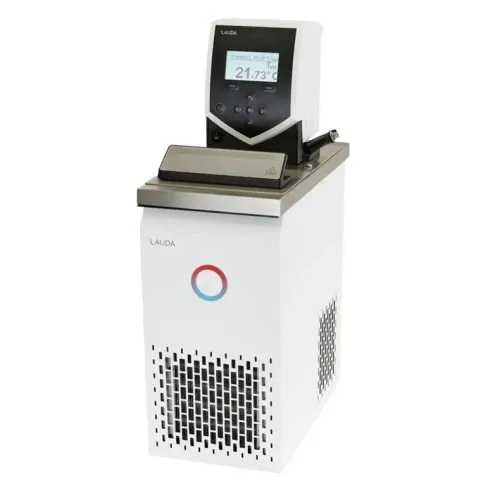

LAUDA ECO RE 415 SW cooling thermostat: Precision and reliability for temperature control
The LAUDA ECO RE 415 SW is a compact yet powerful refrigeration thermostat designed for demanding temperature control requirements in laboratory or industrial environments. It combines state-of-the-art microprocessor technology with high cooling capacity, offering an extended operating range from -15 °C to +200 °C.
The temperature control system is based on fully electronic regulation with PID action, guaranteeing thermal stability of ±0.02 K. The monochrome graphic LCD display allows simultaneous reading of current and setpoint values. The menu navigation, available in plain language, makes the device very easy to use, even for novice users.
The thermostat incorporates a Vario pump with six adjustable performance levels, offering a flow rate of up to 22 L/min and a maximum pressure of 0.6 bar. The flow between the internal and external circulation can be regulated during operation without contact with the bath, improving the safety and flexibility of the system.
The stainless steel bath, measuring 130 × 105 × 160 mm, has a capacity of 3.3 to 4.0 litres and is equipped with a drain valve for easy maintenance. The device is classified as safety class III, allowing it to be used with flammable and non-flammable liquids, with an overheating cut-off device that can be adjusted via the menu.
The ECO RE 415 SW model is compatible with several interface modules for extended connectivity: analogue module, contact module, RS 232/485 modules, Profibus or Ethernet-USB. It can also be expanded with a Pt100/LiBus module for external or remote control via the Command console. A USB interface is provided as standard, facilitating updates or communication with external systems.
For the automation of thermal procedures, an integrated programmer allows a programme with up to 20 segments to be defined. The cooling system uses R-134a refrigerant, which complies with European legislation on fluorinated gases, ensuring a low environmental impact.
Weighing 21 kg and measuring 180 × 350 × 546 mm, the thermostat is designed to be robust and space-saving. It operates on a 115 V, 60 Hz power supply with a NEMA 5-15P plug, ensuring compatibility with North American installations.
The LAUDA ECO RE 415 SW is therefore an ideal solution for professionals seeking precision, safety and modularity in temperature control.
