Electrocardiograph AT-1 - Good

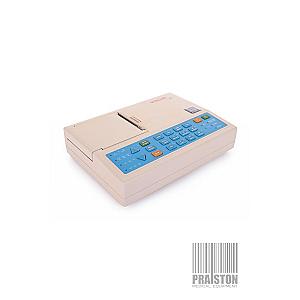

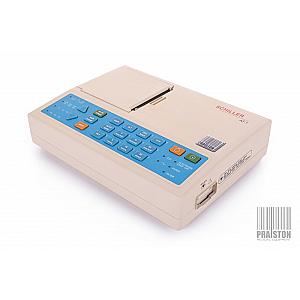

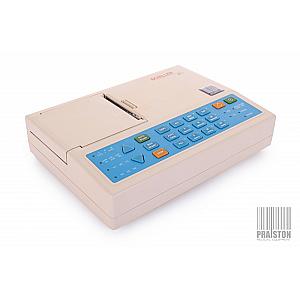

Versatile SCHILLER CARDIOVIT AT-1 3-Channel Electrocardiograph for Accurate ECG Analysis

The SCHILLER CARDIOVIT AT-1 is a versatile and efficient 3-channel electrocardiograph designed to provide quick and accurate ECG analysis with 12 leads. Designed to meet the needs of healthcare professionals, the AT-1 combines advanced features with simple and intuitive operation. Despite its compact size, the AT-1 offers functionalities usually found in high-end models, making it a valuable tool for various medical environments, from general practitioners' offices to hospital departments, and even for mobile healthcare applications.

With the capability of simultaneous 12-lead acquisition, the AT-1 ensures comprehensive and precise cardiac evaluations. This allows capturing all standard leads simultaneously, which is essential for a detailed and rapid analysis of the patient's cardiac condition. The one-button operation simplifies its use, allowing healthcare professionals to focus on patient care rather than managing the device. The simplicity of this operation also reduces the risk of human error and improves workflow efficiency.

The AT-1 supports both automatic and manual modes, providing flexibility in how ECGs are performed and recorded. In automatic mode, the device optimizes settings to deliver high-quality recordings without manual intervention, while in manual mode, users can adjust parameters according to the specific needs of the patient or clinical situation.

The built-in thermal printer produces high-resolution three-channel prints, offering multiple report formats to meet various clinical needs. The prints are clear and detailed, facilitating the interpretation of results. The rechargeable built-in battery provides up to 2 hours of continuous use, ensuring reliability during mobile and bedside applications. Additionally, the AT-1 includes an integrated charging unit, enhancing its convenience and portability. This allows healthcare professionals to use the device in various environments without worrying about the immediate availability of a power source.

Lightweight, weighing only 2.9 kg (6.7 lbs), the AT-1 is easy to transport and handle. This portability is particularly useful for emergency situations, home visits, or in rural clinics where access to medical equipment may be limited. It features a robust patient input circuit, fully floating and isolated, with defibrillation protection when used with the original SCHILLER patient cable. This ensures patient safety and protects the device from potentially damaging electrical interference.

The device is equipped with programmable filters for muscle tremors and power line frequency, ensuring clear and precise recordings even in challenging environments. The muscle tremor filters reduce artifacts caused by patient movement, while the line frequency filters eliminate electrical interference, providing high-quality ECG tracings.

The AT-1 complies with international safety and performance standards, including IEC/EN 60601-1 and IEC/EN 60601-2-25, ensuring its reliability and safety in clinical use. It operates efficiently in a wide range of environmental conditions, making it suitable for use in various climates and settings. For example, the device can be used in hot and humid climates as well as in colder and drier environments, thanks to its robust and adaptable design.

The SCHILLER CARDIOVIT AT-1 is a comprehensive and reliable electrocardiograph, ideal for a variety of clinical applications. Its intuitive design, advanced features, and robustness make it a preferred choice for healthcare professionals seeking to perform precise and efficient ECG analysis, regardless of location or situation.

• System Dimensions: 290 x 210 x 69 mm (11.4 x 8.3 x 2.7 in.)
• Weight: Approximately 2.9 kg (6.7 lbs)
• Power Supply: 220–240 V or 110–115 V, 50/60 Hz
• Power Consumption: Max. 28 VA
• Battery: Built-in rechargeable battery, 2 hours capacity, 15 hours charging time from fully discharged
• Leads: Standard / Cabrera
• Frequency Range: 0 Hz to >150 Hz (IEC/AHA)
• Sampling Frequency: 1000 Hz
• Pacemaker Detection: ≥ ± 2 mV / ≥ ± 0.1 ms
• Filters: 25 Hz (40 dB/dec) or 35 Hz (20 dB/dec) muscle tremor filter, 50/60 Hz line frequency filter
• Display: LED indicators for various functions
• Printer: High-resolution thermal printer, 5/25/50 mm/s paper speed, 5/10/20 mm/mV sensitivity
• Safety Standards: IEC/EN 60601-1; UL 60601-1; C22.2 No. 601.1-M90; IEC/EN 60601-2-25; IEC/EN 60601-1-2 (EMC)
• Environmental Conditions: Operating temperature 10° to 40° C, storage temperature -10° to 50° C, relative humidity 25 to 95% (non-condensing)
