Electronic scalpel ERBOTOM ICC 200 - Good

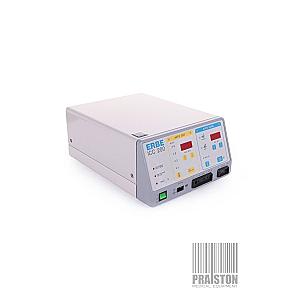

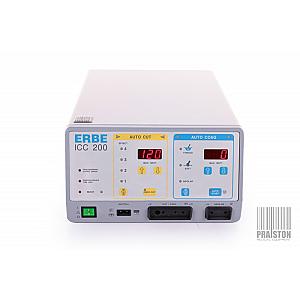

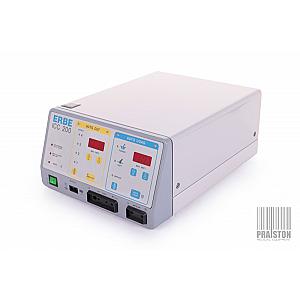

Erbe ERBOTOM ICC 200 Electrosurgical Unit: Cutting-edge Technology for Precise and Safe Surgical Interventions.

The Erbe Erbotom ICC 200 is an advanced electrosurgical unit that offers over 200 watts of output, making it a powerful and versatile tool for a variety of surgical procedures. Equipped with a wide range of cutting and coagulation modes, the ERBE ICC 200 provides surgeons with precise control over the surgical process, ensuring optimal results.

With cutting modes such as Auto Cut, Endo Cut, Forced Coagulation, Soft Coagulation, and Bipolar Coagulation, the Erbe Erbotom ICC 200 offers exceptional flexibility to adapt to the specific needs of each procedure. For instance, the Auto Cut provides an open and closed-loop automatic control system, guaranteeing consistent and reproducible cutting quality.

The Endo Cut mode is particularly useful for procedures such as polypectomy and papillotomy, allowing precise control of the cut when using wire loops and sphincterotomes. On the other hand, Forced Coagulation offers a unique and effective way to stop blood flow by creating sparks with small surface electrodes, such as resection loops from TUR.

Additionally, the Erbe Erbotom ICC 200 features a Soft Coagulation mode, which can be easily activated using a key or a pedal attached to the machine, providing a convenient option for controlled bleeding cessation. Lastly, the Bipolar Coagulation mode offers consistent cutting control with a voltage of less than 200Vp, minimizing the risk of tissue damage and providing greater precision during the procedure.

In summary, the Erbe Erbotom ICC 200 is an indispensable tool for surgeons seeking exceptional performance and precise control in a variety of surgical procedures. Its combination of power, versatility, and advanced technology makes it a preferred choice to ensure optimal and safe outcomes in the operating room.

• Weight: 8 kg

• Width: 280 mm
• Height: 152 mm
• Depth: 368 mm

• Power Supply Conditions
• Nominal voltage: 240 V / 230 V / 115 V / 110 V / 100 V ± 10 %.
• Nominal power frequency: 50 / 60 Hz
• Power supply current: 3.0 A at 230 – 240 V / 6.0 A at 100 – 115 V
• Standby power consumption: 25 watts
• Maximum HF power consumption: 450 watts 690 VA
• Standby current consumption: 150 mA at 230 – 240 V / 300 mA at 100 – 115 V
• Potential compensation terminal: Yes
• Power supply fuse: 2 slow-blow fuses, 4 A at 230 – 240 V / 8 A at 100 – 115 V

• Cutting / Auto-Cutting with Automatic Voltage Control
• HF voltage waveform: unmodulated sinusoidal alternating voltage
• Crest factor C, at RL=500 ohms C = 1.4 for all settings
• Nominal frequency: 330 kHz Maximum HF voltage at RL=∞ 600 Vp

• Soft Coagulation
• HF voltage waveform: unmodulated sinusoidal alternating voltage
• Crest factor C, at RL = 500 ohms C = 1.4 for all settings
• Nominal frequency of AF voltage: 330 kHz

• Forced Coagulation
• HF voltage waveform: pulse-modulated alternating current (ST generator)
• Crest factor C, at RL=500 ohms C = 5 at 120 Wmax, C = 11 at 5 Wmax
• Nominal frequency of AF voltage: 1 MHz
