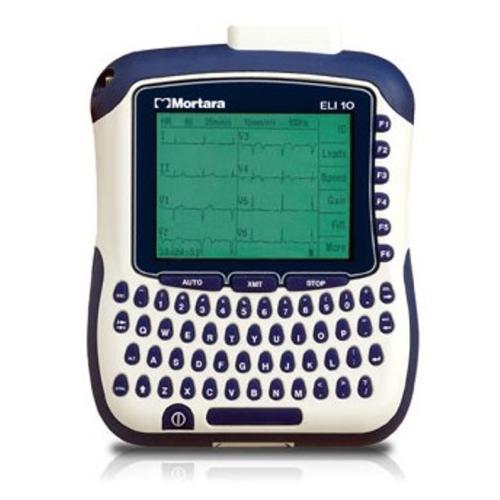

ELI 10 Electrocardiograph - Fair Condition

The ELI 10 – A portable, high-performance ECG solution

The Mortara ELI 10 is a 12-lead resting electrocardiograph that combines portability, performance and reliability. Designed to meet the needs of healthcare professionals in a variety of environments, it stands out for its compact size, ease of use and ECG data analysis and transmission capabilities.

The ELI 10 is truly a pocket-sized device, ideal for travel or confined spaces. Its backlit LCD screen provides real-time visualisation of ECG signals, allowing immediate verification of data quality before recording. The user interface is intuitive, with an alphanumeric elastomer keypad and dedicated keys for ECG acquisition and transmission.

One of the major advantages of the ELI 10 is the integration of the VERITAS™ interpretation algorithm, internationally recognised for its accuracy. This tool provides automated analysis of ECG tracings, including specific criteria based on the patient's age and gender, and helps clinicians make a quick and reliable diagnosis.

In terms of connectivity, the ELI 10 offers several options: internal modem, GSM/GPRS module, WLAN and USB port. These interfaces enable ECG transmission to management systems such as E-Scribe™, Athena™, or to third-party systems via XML, PDF, UNIPRO and DICOM® protocols. The device can also receive order lists and customised identification formats, facilitating integration into hospital workflows.

The ELI 10 has an internal memory capable of storing up to 60 ECGs, which can be expanded to 150 as an option. It can be used with a docking station for recharging and connecting to external devices, such as a laser printer or USB stick. ECGs can be printed via the network or directly from the docking station.

Patient safety is ensured by cables with defibrillation protection and compliance with IEC 60601-1 and IEC 60601-2-25 standards. The device is classified as CF type equipment, with defibrillation-resistant applied parts.

The ELI 10 is a comprehensive, mobile and efficient ECG solution, tailored to the needs of healthcare professionals in practices, hospitals or on call. It combines ergonomics, diagnostic accuracy and connectivity in an ultra-portable format.

• Instrument type: 12-lead electrocardiograph (resting)
• Input channels: Simultaneous acquisition of 12 leads
• Standard leads acquired: I, II, III, aVR, aVL, aVF, V1 to V6
• Curve display: Backlit ¼ VGA LCD screen, 320 × 240 pixels; display in groups of 3 or 8 leads
• Input impedance / dynamic / offset tolerance / common mode rejection: Compliant with or exceeds ANSI/AAMI EC11 requirements
• Patient leakage currents / chassis: Compliant with or exceeds ANSI/AAMI ES1 requirements
• Sampling rate:
  • 10,000 s/sec per channel for pacemaker peak detection
  • 1,000 s/sec per channel for recording and analysis
• Printing: Compatible with 300 dpi laser printers supporting PCL 3 language (compatibility not guaranteed with all printers)
• Paper speed: 25 mm/s (for printing only)
• Gain settings: 5, 10 or 20 mm/mV
• Available print formats: Standard or Cabrera; 3, 3+1, 3+3, 6, 6+6 or 12 leads
• Special features:
  • VERITAS™ interpretation algorithm (optional), based on age and gender
  • Bidirectional connectivity options (USB, LAN, WLAN, GSM/GPRS, modem)
  • Flash memory backup of ECGs
• Keyboard type: Full alphanumeric elastomer keyboard, soft-key menu, dedicated function keys
• Frequency response: 0.05 to 300 Hz
• Available filters:
  • High-performance base filter
  • 50/60 Hz mains interference filter
  • Low-pass filter: 40 Hz or 150 Hz
• Analogue/digital conversion: 20 bits (1.17 µV LSB)
• Device classification:
  • Class I
  • Type CF (defibrillation-resistant applied parts)
  • Compliant with IEC 60601-1, IEC 60601-2-25, UL2601-1, CAN/CSA C22.2 No. 601.1
• ECG storage capacity:
  • Up to 60 recordings in standard memory
  • Up to 150 ECGs in extended memory or via USB key
• Weight: 1.2 lb (approx. 0.54 kg), battery included
• Dimensions (excluding docking station): 17.2 cm × 13.5 cm × 3.8 cm
• Power supply:
  • Internal rechargeable lithium-ion battery
  • Universal power supply 100–240 V, 50/60 Hz, 50 VA
