Ergomed 600 ENT Unit

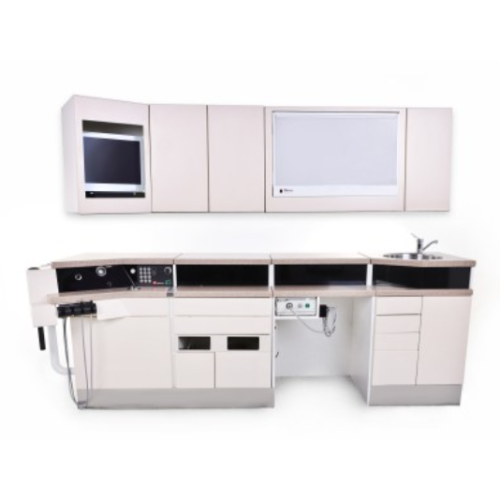

Ergomed 600 ENT unit by Entermed – A complete modular solution designed for modern practices

Designed for ENT practitioners looking for a highly functional workstation, the Ergomed 600 from Entermed combines a refined design with an ingenious modular layout. Thanks to its high-quality materials — wood panelling and MARLAN marble worktop — it is both attractive and robust.

This unit consists of four complementary segments (two floor-standing and two suspended), each dedicated to a specific function: treatment station, washing area, storage space with lighting, and module with integrated film viewer. This modularity allows the configuration to be adapted to the needs of the practice and facilitates the layout of the clinical space.

The first segment serves as the main workstation. It is equipped with an intuitive control panel, configurable compartment drawers, an automatic mirror heater, and an optical heater. The two-level worktop optimises the available space, while the sliding shelves allow instruments to be organised with precision.
The integrated halogen light source switches on automatically when the fibre optic cable is lifted. A small wash basin, activated via the control panel, is complemented by a suction system with a 1.5 L jar (Baxter type). This segment also has two sockets for connecting additional equipment.

Segment II includes a large washbasin (Ø 38 cm) with tap, a sliding shelf and a low cabinet with metal basket. It also offers four drawers for storing instruments. An HL-150 light source with adjustable intensity provides precise lighting, and a connection for a headlamp is provided (automatic activation when the lamp is lifted).

The suspended segment III includes a monitor slot (convertible to a solid door), under-cabinet lighting and two cabinets with adjustable shelves. A lower shelf allows for the integration of an additional light source. The monitor can be mounted on a fixed stand or articulated arm (options available).

The final segment, IV, is suspended and includes a professional Dutch-made film viewer with six 15 W fluorescent tubes, ideal for analysing X-rays. It also includes an adjustable storage shelf and under-cabinet lighting, ensuring visual comfort and practicality.

• Power supply: 230 V
• Frequency: 50/60 Hz
• Power: 2300 VA
• Materials: wood panelling, MARLAN marble worktop
• Configuration: 2 standing segments + 2 suspended segments
• Worktop height: 94 cm
• Under-cabinet lighting: OSRAM Linestra 230V 35W lamps
• Manufacture of the negatoscope: Netherlands
• Segment dimensions:
  • Segment I: 144 x 80 cm
  • Segment II: 123 x 55.5 cm
  • Segment III: 130.5 x 57 x 67.5 cm
  • Segment IV: 123 x 37.5 x 67.5 cm
