Gastroscope GIF-H180J - Good

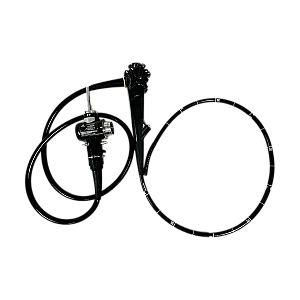

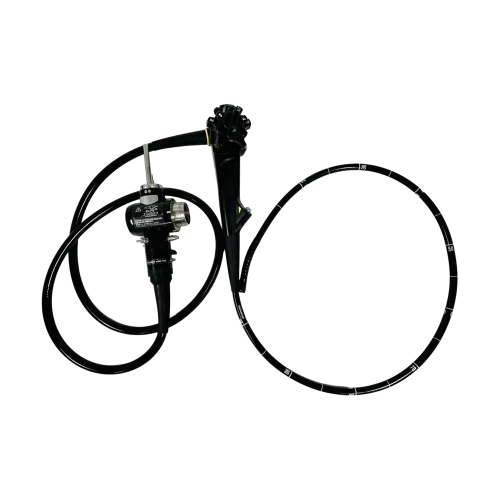

Olympus GIF-H180J: The Ultimate Tool for Routine Upper Gastrointestinal Endoscopy

The Olympus GIF-H180J represents the pinnacle of technology in routine upper gastrointestinal endoscopy. Designed for healthcare professionals seeking unparalleled performance, this endoscope integrates advanced imaging capabilities with user-friendly features to enhance diagnostic accuracy and patient comfort. Its innovative design is tailored for optimal navigation and visualization, making it an essential instrument in any endoscopy suite.

At the heart of the GIF-H180J is its high-definition HDTV imaging system, which utilizes a state-of-the-art CCD chip to deliver exceptional image clarity. This technology allows physicians to see intricate details of the mucosal and capillary structures within the upper gastrointestinal tract, significantly improving the accuracy of screenings and diagnoses. The lifelike imaging capabilities, combined with the option for Narrow Band Imaging™ (NBI), enhance the ability to detect subtle abnormalities that may be missed with traditional imaging methods.

Narrow Band Imaging™ is a revolutionary feature that utilizes specific wavelengths of light to enhance the visibility of vascular structures and mucosal patterns. This enables clinicians to observe capillary structures more clearly, allowing for earlier detection of potential pathologies, such as dysplasia or early-stage tumors. The integration of this technology into the GIF-H180J not only improves diagnostic capabilities but also promotes better patient outcomes through timely interventions.

The GIF-H180J is designed with a slim insertion tube measuring just 9.9 mm in diameter, facilitating easier access and insertion, even in challenging anatomical situations. This slender design is especially beneficial in patients with strictures or other abnormalities that may complicate traditional endoscopic procedures. The scope’s four-way angulation—210º upward, 90º downward, and 100º to either side—provides exceptional maneuverability, allowing physicians to navigate through the upper gastrointestinal tract with ease. This flexibility ensures comprehensive examinations while minimizing patient discomfort.

One of the features of the GIF-H180J is its auxiliary water jet function. This convenient addition allows practitioners to quickly flush out blood, mucus, and other debris from the visual field, ensuring a clear view at all times. This capability is particularly advantageous during procedures where visibility may be compromised, thus enhancing the efficiency of the examination and reducing the overall procedure time.

The GIF-H180J also boasts a 2.8 mm instrument channel, compatible with a wide range of accessories. This feature allows for the introduction of various instruments, including biopsy forceps, snares, and other therapeutic devices. With a minimum visible distance of just 3 mm from the distal end, the scope enables detailed observation and interaction with the targeted areas of the gastrointestinal tract.

The optical system of the GIF-H180J offers a 140º field of view, allowing clinicians to visualize a broad area with minimal movement. This wide field enhances the examination experience and reduces the need for excessive manipulation of the scope, leading to a more efficient and comfortable procedure for patients.

In terms of dimensions, the GIF-H180J has a total length of 1,345 mm and a working length of 1,030 mm, making it suitable for a variety of patient anatomies. The depth of field ranges from 2 mm to 100 mm, providing versatility in viewing distances that accommodates different procedural requirements.

The Olympus GIF-H180J is an exceptional tool for upper gastrointestinal endoscopy, offering high-definition imaging, advanced features, and ergonomic design. By equipping healthcare professionals with this state-of-the-art endoscope, Olympus reaffirms its commitment to enhancing patient care and improving diagnostic outcomes in gastrointestinal medicine.

• Field of View: 140º
• Direction of View: Forward viewing
• Depth of Field: 2 to 100 mm
• Distal End Outer Diameter: 9.9 mm
• Insertion Tube Outer Diameter: 9.9 mm
• Bending Section Angulation Range:
  • Up: 210º
  • Down: 90º
  • Right: 100º
  • Left: 100º
• Working Length: 1,030 mm
• Total Length: 1,345 mm
• Instrument Channel Inner Diameter: 2.8 mm
• Minimum Visible Distance: 3 mm from the distal end
