Imaging system Odyssey Fc

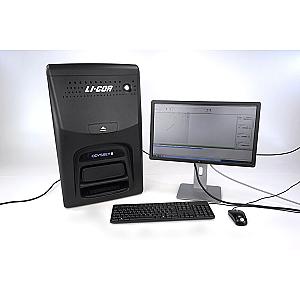

Odyssey FC Imaging System: The Ultimate Solution for Imaging Western Blots and DNA Gels

The Odyssey FC Imaging System is distinguished by its unique ability to offer superior chemiluminescent detection alongside the benefits of quantitative infrared Western blots. This versatile system allows laboratories to combine these two detection methods on a single instrument, optimizing workflow and research efficiency.

The Odyssey FC is designed to provide consistent and reproducible digital images, eliminating the uncertainties and hassles associated with using film. Thanks to its technology, it captures clear, low-background images without the need for complex camera adjustments. This precision allows researchers to analyze their data immediately and plan their next experiments with confidence.

The system offers an exceptional 6-log linear dynamic range, ensuring reproducible and reliable results. Near-infrared fluorescence detection ensures consistent signals, unaffected by timing, which is crucial for accurate and detailed analyses. Additionally, the Odyssey Fc allows for documentation of DNA gels using the 600 nm channel, adding additional flexibility to its imaging capabilities.

With the Odyssey Fc, labs can detect multiple targets on the same blot using dual-channel near-infrared fluorescence. This feature is ideal for complex analyses requiring high accuracy and clear data visualization. Additionally, the system is backed by a team of expert scientific support staff, ensuring high-quality assistance for all users.

The Odyssey Fc Imaging System is an indispensable tool for research labs seeking to maximize their efficiency and data quality. Its unique combination of chemiluminescent and infrared detection, combined with imaging capabilities, makes it a preferred choice for demanding scientists.

• Weight: 27 kg (60 lb)
• Dimensions: 41.4 cm (W) x 47 cm (D) x 67.3 cm (H)
• Depth with imaging drawer open: 59.7 cm
• Image field size: 10 cm x 12 cm
• CCD pixel size: 6.45 microns
• Dynamic range: 22 bits (>6 logs)
• Depth of field for best sample focus: 6 mm
• FieldBrite™ XT technology: CV <3% across the field
• Laser lifetime: 20,000 hours of operation
• Laser sources: 685 nm semiconductor laser diode (700 channel), 785 nm semiconductor laser diode (800 channel)
• Detectors: Low-noise, thermoelectrically cooled CCDs
• Acquisition times:
  • Fluorescence channels (700 and 800 nm): 30 s, 2 min, 10 min plus variable time function
  • Chemiluminescence channel: 30 s, 2 min, 10 min, 60 min plus variable time function
• Focus: Automatic
• Operating conditions: Indoor use; operating temperature 15-35°C and dew point <22°C, non-condensing; maximum operating temperature may be reduced at altitudes above 2000 m
• Power supply: Universal input between 100-127 VAC (4 Amps) and 200-240 VAC (2 Amps); 50-60 Hz
