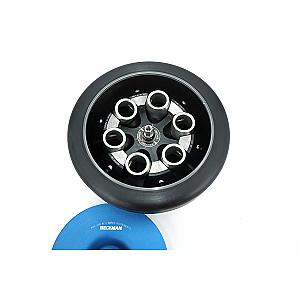

JS-13.1 swinging bucket rotor

The Beckman Coulter JS-13.1 is a swinging bucket rotor designed for J2, J6 and Avanti J centrifuges. Capable of reaching a maximum speed of 13,000 rpm, it can accommodate up to six 50 mL tubes, making it an ideal solution for pelleting or density gradient separation of cells, tissues or subcellular particles. Made of anodised aluminium, this rotor offers robustness, reliability and excellent durability. It guarantees optimal performance in demanding protocols thanks to a design that ensures balance and safety during use.



Description

JS-13.1: The high-performance swing-bucket rotor for analytical and preparative centrifugation

The Beckman Coulter JS-13.1 is a swinging bucket rotor specifically designed to meet the rigorous requirements of centrifugation applications in biomedical, pharmaceutical and research laboratories. Compatible with Beckman Coulter J2, J6 and Avanti J series centrifuges, it is a versatile solution for cell, subcellular or tissue separation protocols, thanks to its ability to efficiently process up to six 50 mL tubes at a maximum speed of 13,000 rpm.

This rotor is capable of generating a relative centrifugal force (RCF) of 26,500×g at its maximum radius (140 mm), enabling it to process even the most complex samples with remarkable speed and precision. Whether for pellet recovery or density gradient separations, the JS-13.1 guarantees reliable and reproducible results. Its particularly low k-factor of 1841 indicates a short sedimentation time, which is advantageous for rapid centrifugation methods.

Made of anodised aluminium, the rotor is both lightweight and extremely corrosion-resistant, especially when properly maintained with the recommended products. It also features a blue anodised lid, which is securely fastened with a central knob that attaches to the centrifuge hub. The design allows for effective mechanical locking and increased stability during acceleration and deceleration phases.

The structure of the JS-13.1 also guarantees excellent safety: the lid stays in place thanks to the difference in air pressure generated during rotation, and the cups tilt 90° to keep the samples horizontal during centrifugation. The rotor is designed to work with a wide variety of tubes, including polycarbonate, polypropylene or polyethylene tubes of different volumes (1.5 mL to 50 mL), with or without caps. It also accepts specific tubes with adapters, further enhancing its flexibility of use.

Each component is designed to maximise the longevity of the assembly while ensuring user safety. The rotor is ISO 9001 and ISO 13485 certified. It is also autoclavable at 121°C for one hour and can be cleaned with specific solutions without damaging its anodised coating. In addition, Beckman Coulter recommends the exclusive use of certified accessories to guarantee the performance and safety of the device.

Operational aspects are also simplified: the rotor can be pre-cooled before use, its installation on the centrifuge hub is assisted by a lifting tool provided, and it can be used with or without its lid (at the cost of a loss of performance in terms of temperature and speed). It is also compatible with the temperature compensation functions of the J2 and J6 models, which maintain a precise sample temperature even at high speeds.

The JS-13.1 is a robust, high-performance and adaptable rotor that is the benchmark choice for laboratories seeking efficiency, safety and precision in their centrifugation protocols.

Features

  • Compatible with Beckman Coulter J2, J6 and Avanti J centrifuges
  • Tilting cup design ensures horizontal orientation of samples
  • Accepts many types of tubes (1.5 mL to 50 mL) with adapters
  • Robust anodised aluminium design for high corrosion resistance
  • Lid secured by pressure differential and mechanical locking
  • Can be used without lid (with reduced performance)
  • Rapid pre-cooling thanks to reduced thermal inertia
  • Programmable rotor code for microprocessor-controlled centrifuges
  • Easy installation thanks to the supplied lifting handle
  • Simple cleaning and decontamination with recommended kits and products

Technical Details

Rotor type: tilting bucket

Maximum speed: 13,000 rpm

Max. RCF: 26,500 × g (rmax 140 mm)

Average RCF: 17,200 × g (rav 91 mm)

Min. RCF: 7,760 × g (rmin 41 mm)

Number of buckets: 6

Capacity per cup: 50 mL

Total capacity: 300 mL

K factor: 1841 (at full load, at max speed)

Material: Anodised aluminium

Weight (loaded): 9 kg

Acceleration/deceleration time: approx. 2.5 min

Critical speed range: 600 to 800 rpm

Maximum solution density: 1.2 g/mL

Operating temperature: 2 to 25 °C for plastic tubes

Rotor code for J2/J6: 13

Autoclavable: yes, 121 °C, 1 hour

Compatible Accessories

  • Cup set: ref. 346976
  • Rotor lid: ref. 346964
  • Complete rotor: ref. 346963
  • Protective ring (windshield trim): ref. 346979
  • Tie-down kit: ref. 364921
  • Lifting handle and removal tool: ref. 346965
  • Cleaning kits:
    • Solution 555: ref. 339555
    • Complete cleaning kit: ref. 339558
  • Lubricants and greases:
    • Spinkote: ref. 306812
    • Silicone grease: ref. 335148
  • Compatible tubes:
    • 50 mL polycarbonate and polypropylene tubes (snap-on or screw-on caps)
    • 1.5 mL to 10 mL tubes with specific adapters (ref. 344497, 342327, etc.)
    • 5 mL and 7 mL round tubes with adapters (ref. 356970, 356976)
