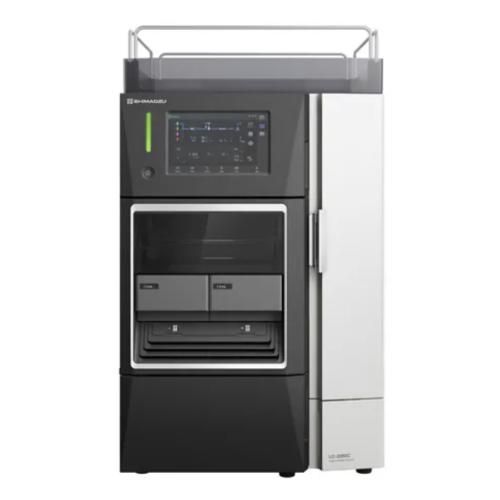

LC-2060C 3D Liquid Chromatograph - Good Condition 2022

LC-2060C 3D: Liquid chromatography with PDA detection

The Shimadzu LC-2060C 3D is a state-of-the-art liquid chromatography system designed to meet the demands of modern laboratories for precision, reliability and analytical flexibility. Featuring a diode array detector (PDA), it covers a wide wavelength range from 190 to 800 nm with a spectral resolution of 1.4 nm, enabling accurate compound identification and comprehensive spectral analysis. The PDA detector offers excellent linearity up to 2 AU, low drift (≤ 500 × 10⁻⁶ AU/h) and low noise (≤ ±3 × 10⁻⁶ AU), ensuring reproducible results even under variable conditions.

Optimised performance for demanding environments

The LC-2060C 3D is designed to offer exceptional stability thanks to dual thermal control (TC-Optics and flow cell), minimising the effects of ambient temperature fluctuations. Its dual parallel piston pump unit ensures flow accuracy of ≤ ±1% or ≤ ±2 µL/min (depending on specified conditions), with an adjustable flow range of 0.0001 to 10 mL/min. It supports maximum pressures of up to 70 MPa for low flow rates, ensuring compatibility with UHPLC columns.

The column oven uses a forced air circulation method to maintain temperatures from 10 to 90°C, with an accuracy of ±0.1°C. It can accommodate up to three 300 mm columns or six 100 mm columns, and an optional unit allows low-temperature analysis (down to -15°C).

Intelligent automation and high sampling capacity

The LC-2060C 3D autosampler offers excellent reproducibility for injection volumes of less than 1 µL, with linearity > 0.9999 and ultra-low cross-contamination (< 0.0025%). It can process up to 1,536 samples thanks to its side racks, with a fast injection cycle of 14 seconds. The user interface is simplified by a colour touch screen, allowing guided maintenance and real-time visualisation of chromatograms, even without a computer.

The system incorporates analytical intelligence features such as automatic diagnostics, error management during data acquisition, and performance optimisation without human intervention. These capabilities enable high-quality data acquisition, regardless of the operator's skill level.

• Wavelength range: 190 to 800 nm
• Spectral resolution: 1.4 nm
• Slit width: 1.2 nm, 8 nm
• Device resolution: 0.6 nm/pixel
• Number of PDA elements: 1024
• Wavelength accuracy: ≤ ±1 nm
• Noise level: ≤ ±3 × 10⁻⁶ AU
• Drift: ≤ 500 × 10⁻⁶ AU/h
• Linearity: Up to 2 AU
• Sampling rate: Up to 100 Hz
• Light source: D2 lamp (standard), tungsten lamp (optional)
• Flow cell: 10 µL (10 mm, TC), 12 MPa
• Pump: Dual parallel piston
• Flow rate range: 0.0001 to 10 mL/min
• Flow rate accuracy: ≤ ±1% or ≤ ±2 µL/min
• Maximum pressure: Up to 70 MPa
• System dead volume: 460 µL (option: 650 µL, 1100 µL)
• Oven temperature range: 10 to 90 °C (with option)
• Temperature accuracy: ±0.1 °C
• Dimensions: L410 × H605 × D500 mm
• Weight: 64 kg
• Compatible pH range: 1 to 13
