Modular cross-filtration system Sartoflow Advanced


Be notified by email when the product is available
Subscribe to our partner program and become a Remma seller.

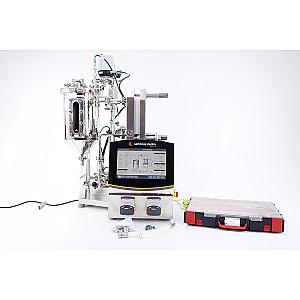

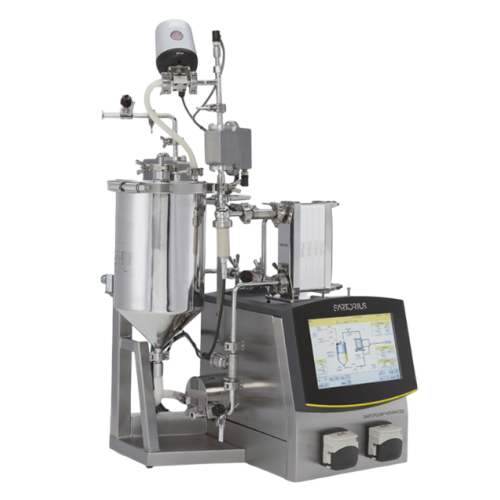

The Sartoflow® Advanced is a modular cross-flow filtration system designed for ultrafiltration, microfiltration, and diafiltration in biopharmaceutical processes.

Ideal for the purification of vaccines, monoclonal antibodies, and recombinant proteins, it offers linear scaling from 0.1 to 2.1 m² of membrane surface area.

Its compact design and minimum recirculation volume of 200 ml allow efficient concentration of small batches.

Featuring a 12" touchscreen and an interface with BioPAT® MFCS software, it ensures precise parameter control.

Suitable for laboratory and production environments, the Sartoflow® Advanced is the ideal solution for reliable and flexible filtration.

Description

Sartoflow® Advanced: Performance and Flexibility in Biopharmaceutical Filtration

The Sartoflow® Advanced is an cross-flow filtration solution designed to meet the demands of biopharmaceutical laboratories and production environments. Designed for ultrafiltration, microfiltration, and diafiltration, this system enables the efficient purification of vaccines, monoclonal antibodies, viral vectors, and recombinant proteins. Its modular architecture incorporates customization options tailored to each need, offering unparalleled flexibility.

Its key advantage lies in its linear scalability from 0.1 to 2.1 m² of membrane surface area, thanks to its compatibility with standard Sartocon® Slice and Sartocon® cassettes. This system is equipped with an DCU-4 control unit, facilitating integration with BioPAT® MFCS software for optimal real-time monitoring and management of parameters.

With a minimum recirculation volume of approximately 200 ml, the Sartoflow® Advanced ensures efficient concentration of small batches while minimizing product loss. It is designed to operate under demanding conditions, ensuring stable and reproducible performance. Its intuitive user interface with a 12" touchscreen allows precise control of pressure, flow, and temperature, providing an optimal user experience.

Compatible with 10 L stainless steel tanks or 5, 10, and 20 L single-use bags, this system adapts to different production needs. Its high-performance pumping system, with a capacity of 700 L/h at 4 bar, ensures a constant and consistent flow.

By integrating automated cleaning-in-place (CIP), rinsing, and emptying features, the Sartoflow® Advanced guarantees compliance with GMP standards and optimal traceability via BioPAT® MFCS. It is therefore the ideal tool for efficient and secure cross-filtration in the biopharmaceutical industry.

Features

  • Compact and integrated design.
  • Linear scaling from 0.1 to 2.1 m².
  • Minimum recirculation volume of 200 ml.
  • Compatible with Sartocon® and Sartocon® Slice cassettes.
  • Control via 12" touchscreen and BioPAT® MFCS interface.
  • Suitable for laboratories and production.
  • Automated CIP cleaning system.
  • Integration with GMP-compliant production environments.

Technical Details

  • Weight: ~120 kg
  • Dimensions (WxDxH): 1,100 × 800 × 680 mm
  • Membrane area: 0.1 - 0.5 m² (optionally 0.7 - 2.1 m²)
  • Minimum working volume: ~200 mL
  • Maximum operating pressure: 4 bar (58 psi)
  • Pump output: 700 L/h @ 4 bar
  • Power supply: 230 VAC | 50 Hz 2.5 Amp; 120 VAC | 60 Hz 4 Amp
  • Connection: 0.5" Tri-Clamp
  • Recirculation tank: 316 L stainless steel
  • Cassette format: Sartocon® Cassettes, Slice Cassettes, Standard Cassettes

Compatible Accessories

  • CIP Flush Cassettes.
  • Sartoflow® Smart.
  • Bag stand for 5, 10, and 20 L tanks.
  • Optional second peristaltic pump.
  • Inline conductivity sensor system.
  • BioPAT® MFCS software with modules.
