Non-Mydriatic retinal camera TRC-NW400 - Good 2018

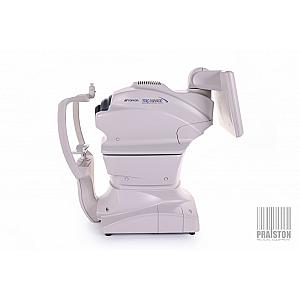

The TRC-NW400 - Capturing Real-Color Fundus Photography

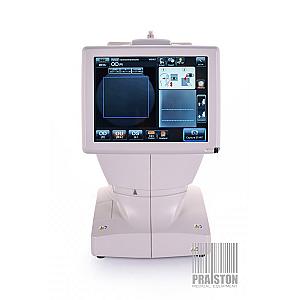

With its 360° rotatable touchscreen, it offers an intuitive and fast solution for capturing high-quality images. This automated system simplifies the process by automatically centering, focusing, acquiring, and moving from the right to the left eye, ensuring consistent results independent of the operator.

In automatic mode, users can select a mode by simply touching the touchscreen, center the pupil with a single touch, and press "Capture START." However, if the situation requires a more personalized approach, the manual mode allows for full control via the touchscreen. Settings such as lighting, flash level, diopter compensation, and internal fixation point position can be adjusted for specific retinal illustrations.

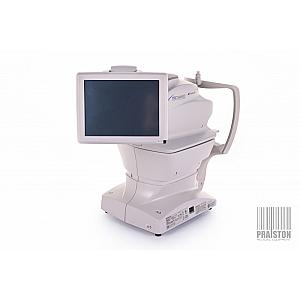

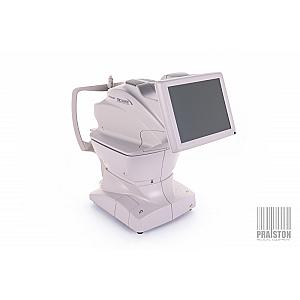

The TRC-NW400's rotatable touchscreen provides ergonomic flexibility, allowing operators to position themselves around the patient for optimal assistance while maximizing workspace. Its clever design enables it to fit into various environments, even in tight spaces.

For patient comfort, the device uses a low-intensity flash of 4.0WS, producing exceptional images with minimal impact on the patient.

The "Small Pupil" mode enables testing on pupils with a diameter of 3.3 mm through digital zoom and overlay mask function.

It also offers a stereo mode for 3D images, with automatic alignment of stereoscopic images simplifying the acquisition process.

Furthermore, the device incorporates internal fixation points, including the optic nerve, central point, and macula, as well as nine fixation points for peripheral photographs.

• Dimensions: 272 x 464 x 512 mm
• Weight: 18 kg

• Power supply: 100-240V, 50/60 Hz, 120VA
• Field of view: 45°, 30°

• Working distance: 34.8 mm
• Minimum pupil diameter: 3.3 mm
