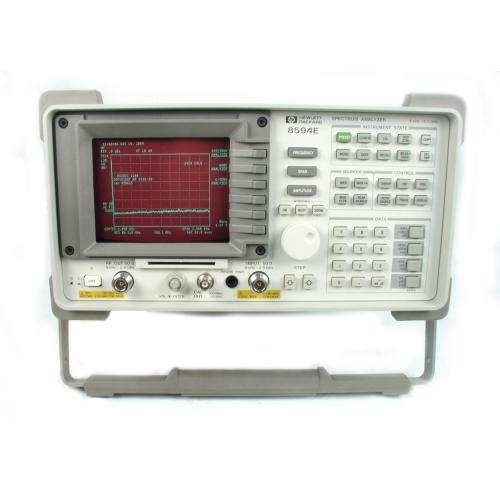

Portable Spectrum Analyser 8594E - Fair Condition

The Agilent 8594E is a portable spectrum analyser designed for high-precision RF and microwave signal measurements. With a frequency range from 9 kHz to 2.9 GHz, this device offers great flexibility for a variety of applications, from laboratory testing to field maintenance. Its intuitive interface, combined with robust measurement capabilities, allows engineers and technicians to perform fast and reliable analyses. Compact and powerful, the 8594E is an effective solution for signal monitoring, interference detection and communication system verification.



Offer Details

Options :

Agilent 8594E

The Offer Details are provided by the seller and automatically translated.

Description

Agilent 8594E: a precise and powerful spectrum analyser for a wide range of applications

The Agilent 8594E is a spectrum analyser that stands out for its ability to cover a wide frequency range from 9 kHz to 2.9 GHz. This device is designed to meet the needs of professionals working in telecommunications, electronics and radio frequency systems. Thanks to its portable and robust design, it can be used both in the laboratory and in the field to perform reliable and repeatable measurements.

The device features a clear, ergonomic display for accurate spectrum viewing. The resolution bandwidth is adjustable from 1 kHz to 3 MHz, offering great flexibility for analysing signals and identifying unwanted components. The Agilent 8594E also enables efficient amplitude level analysis with a range up to +30 dBm, while supporting inputs with peak powers up to 100 W for short-duration pulses.

Measurement accuracy is enhanced by excellent frequency stability and built-in calibration functions. The device has internal memory for data storage and interfaces for easy transfer of results for further processing. Users can take advantage of options such as an integrated tracking generator or a quasi-peak detector for specific applications, greatly increasing its versatility.

Thanks to its architecture, the Agilent 8594E reduces errors due to intermodulation and spurious responses, ensuring clean results even in complex environments. It also complies with electromagnetic compatibility standards, making it a reliable instrument for testing in demanding industrial conditions.

Its universal power supply and low power consumption make it convenient for use in a variety of settings. Whether for filter characterisation, emission spectrum analysis or RF standard compliance verification, this analyser is an indispensable tool for engineers demanding optimal measurement quality.

Features

  • Clear and accurate spectrum display with automatic calibration
  • Fast analysis thanks to multiple trigger modes (free, single, line, video, external)
  • Support for EMI measurements with specific bandwidths (9 kHz and 120 kHz)
  • Protection against DC inputs and high-power signal management
  • Quasi-peak function and AM/FM demodulators available as options
  • Internal memory for storing traces and configuration settings
  • HP-IB and RS-232 interfaces for communication with other devices
  • Compatibility with integrated tracking generator for passive network analysis
  • Certified to MIL-T-28800 standard for high environmental resistance
  • Low power consumption with standby mode at less than 7 W

Technical Details

  • Frequency range: 9 kHz to 2.9 GHz
  • Resolution bandwidth: 1 kHz to 3 MHz (3 dB), sequence 1, 3, 10
  • Video bandwidth: 30 Hz to 1 MHz (1 Hz to 1 MHz with option 130)
  • Frequency accuracy: ±0.5 x 10⁻⁶ (±2.2 x 10⁻⁸ with option 004)
  • Scan time: 20 ms to 100 s (20 µs to 100 s with option 101)
  • Maximum input level: +50 dBm (100 W) for pulses <10 µs
  • Input attenuator: adjustable up to 30 dB
  • Displayed noise level (DANL): up to -127 dBm
  • Dimensions: 325 mm (W) x 163 mm (H) x 427 mm (D)
  • Weight: 16.4 kg

Compatible Accessories

  • HP 85700A Memory Card (32 KB)
  • HP 85702A Memory Card (128 KB)
  • HP-IB cable (HP 10833A)
  • RS-232 serial cable (HP 24542U and HP 24542G)
  • HP C1405B keyboard adapter
  • Soft carrying case (Options 015 and 016)
  • Front panel protective cover (Option 040)
  • Integrated tracking generator (Option 010)
  • HP DeskJet compatible printers (models 340, 400, 680C, etc.)
