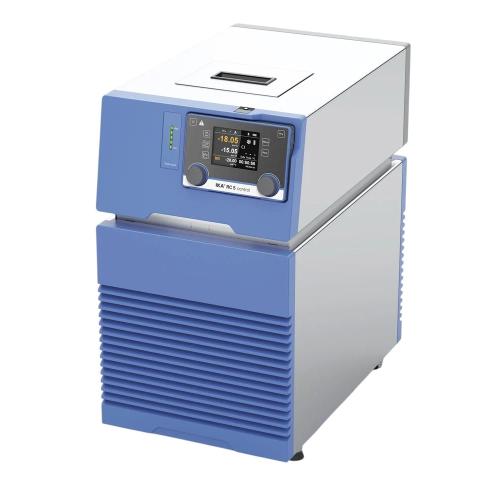

RC 5 control Circulating Cooler - Brand New

The RC 5 control from IKA is a circulating chiller designed to meet the requirements of external cooling applications in a wide temperature range down to -30 °C. With its environmentally friendly R290 refrigerant and 1400 W cooling capacity, this unit combines energy efficiency and compactness for optimal integration into modern laboratories. Equipped with a wireless WiCo controller and a user-friendly interface, it allows precise process monitoring and management from anywhere in the laboratory. Its remarkable thermal stability of ±0.1 K and numerous programming features make it an ideal tool for applications requiring reliable and continuous control.



Offer Details

Options :

IKA RC 5 control

The Offer Details are provided by the seller and automatically translated.

Description

IKA RC 5 control: a precise and flexible cooling solution for your applications

The RC 5 control from IKA has been designed to offer reliable cooling performance and flexibility of use in a variety of scientific and industrial environments. With a cooling capacity of 1400 W at 20 °C and a temperature range from -30 °C to ambient temperature, this device is capable of maintaining optimal thermal conditions, even during demanding processes. The speed-controlled PEEK pump allows continuous adjustment of flow rate and pressure, ensuring smooth circulation of the thermal fluid in the external circuit.

One of the distinctive features of this model is its WiCo wireless controller, which offers total freedom of use, allowing the unit to be controlled remotely for added convenience. In addition, the RC 5 control integrates sophisticated programming features such as 10 customisable temperature ramps with 10 steps each. These options allow complex processes to be automated and simplified, while ensuring constant accuracy thanks to the PT100 temperature sensor.

The insulated 7-litre tank guarantees prolonged use with minimal refilling, while the integrated hopper and drain valve facilitate safe handling of thermal fluids. A hose can be connected to empty the bath without direct contact with the liquid, reducing the risk to the user. Maintenance of the unit is also simplified thanks to the front cover, which can be opened to provide quick access to the air filter for efficient cleaning.

A large TFT display provides detailed information on temperature, fluid level, pump speed and safety parameters in real time. Visual and audible alarms immediately warn of temperature exceedances, low fluid levels or any other critical situations, ensuring a high level of operational safety.

With a compact design and moderate noise level of 61 dB(A), the RC 5 control fits easily into demanding work environments while maintaining a high level of acoustic comfort. Its numerous interfaces, including RS232, USB and Multi IO, allow for easy integration into automated systems and communication with other equipment.

Features

  • WiCo wireless controller for remote management
  • Programming of 10 temperature ramps with 10 steps each
  • Continuous adjustment of pump pressure and flow rate
  • Insulated tank with integrated hopper and drain valve for safe handling
  • PT100 temperature sensor included for direct control in the working environment
  • TFT display for real-time monitoring of parameters
  • Visual and audible alarms for increased safety
  • Compatible with magnetic valves and alarm contacts via Multi IO
  • Protection against overheating and dry running
  • USB and RS232 interfaces for integration into automated systems

Technical Details

  • Temperature range: -30°C to ambient temperature
  • Temperature stability: ±0.1 K
  • Cooling capacity: 1400 W at 20 °C, 1200 W at 10 °C, 950 W at 0 °C, 650 W at -10 °C, 450 W at -20 °C, 200 W at -30 °C
  • Tank: 5.0 to 7.0 litres
  • Refrigerant: R290 (90 g)
  • Maximum refrigerant pressure: 21 bar
  • Pump: pressure and suction with maximum flow rate of 31 l/min
  • Maximum pump pressure: 0.61 bar
  • TFT display for viewing parameters and operation with external sensor
  • Extended operating range up to 80 °C with external heating
  • Dimensions (W x H x D): 310 x 546 x 490 mm
  • Weight: 37.5 kg
  • Noise level: 61 dB(A)
  • Power supply: 230 V, 50/60 Hz
  • Protection class: IP 21

Compatible Accessories

  • PT 100.30 temperature sensor
  • Olive for NW 8 pipes
  • Hose connector NW 12
  • WiCo WH10 bracket
  • OS 1.0 power supply unit for WiCo
  • USB A to Micro-B cable (2 m)
  • USB 2.0 Micro A to Micro B cable
