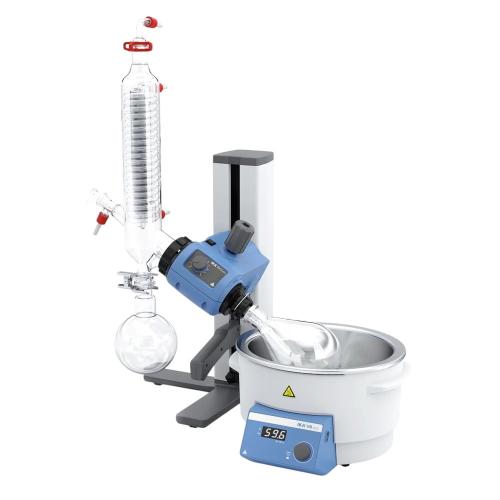

RV 3 V-C Rotary Evaporator - Brand New

The RV 3 V-C from IKA is a compact and efficient rotary evaporator , ideal for laboratories looking for a reliable and economical solution. Designed for versatile use in the fields of chemistry, pharmacy and biotechnology, it features a specially coated vertical condenser with a cooling surface area of 1500 cm². Its ergonomic design with manual lifting, continuous speed adjustment and digital heating bath ensures precise and safe handling. This model is compatible with all IKA RV 10 glassware, ensuring high flexibility.



Offer Details

Options :

IKA RV 3 V-C

The Offer Details are provided by the seller and automatically translated.

Description

RV 3 V-C: compact and versatile rotary evaporator for laboratory applications

The RV 3 V-C rotary evaporator from IKA is an ideal entry-level solution for all laboratories looking for a reliable and efficient device. Specially designed for the chemical, pharmaceutical and biotechnology sectors, it also meets the needs of research and development, production and quality assurance activities. Its careful design and vertical condenser with anti-corrosion coating ensure optimal use even in demanding environments. With a cooling surface area of 1500 cm², it offers high performance while taking up minimal space on the workbench.

The RV 3 V-C is equipped with a 4-litre heating bath that can reach a maximum temperature of 99 °C. The bath uses water heating controlled by a digital display, ensuring precise regulation and increased safety during evaporation processes. Manual lifting allows the glassware to be easily positioned, ensuring ergonomic handling for both right-handed and left-handed users. In addition, the adjustable immersion angle offers welcome flexibility to adapt to different protocols.

The integrated locking mechanism has a red indicator that signals when the vapour tube is unlocked, further enhancing safety during use. The rotation speed is continuously adjustable via a control knob, with a range from 20 to 300 rpm. This precise adjustment is complemented by a speed display that facilitates parameter control. The device operates at a reduced voltage of 24 V, minimising electrical hazards and improving overall safety.

This model is compatible with the complete range of IKA RV 10 glassware, allowing flexible use and adaptation to various types of experiments. Thanks to its compact design and advanced features, the RV 3 V-C is a wise choice for laboratories looking to equip themselves with a high-performance, economical rotary evaporator.

Features

  • 4-litre heating bath with a maximum temperature of 99 °C
  • Digital temperature display for precise control
  • Vertical condenser with special coating and 1500 cm² cooling surface
  • Locking mechanism with red indicator to secure the steam tube
  • Ergonomic manual lifting mechanism suitable for right- and left-handed users
  • Adjustable immersion angle for increased flexibility
  • Continuous speed adjustment via a control knob with display
  • Low-voltage operation (24 V) for enhanced safety
  • Vial fixing system with integrated ejection function for quick change
  • Compatible with all glassware in the IKA RV 10 range

Technical Details

  • Speed range: 20 to 300 rpm
  • Speed display: graduated scale
  • Speed tolerance < 100 rpm: ±1 rpm
  • Speed tolerance > 100 rpm: ±1%
  • Lifting type: manual
  • Lifting stroke: 150 mm
  • Dimensions (W x H x D): 440 x 530 x 330 mm
  • Weight: 22.31 kg
  • Permissible ambient temperature: 5 to 40 °C
  • Permissible relative humidity: 80%
  • Protection class: IP 20 according to DIN EN 60529
  • Voltage: 100–240 V
  • Frequency: 50/60 Hz
  • Power consumption: 75 W

Compatible Accessories

  • RV 3 eco drive
  • HB eco S099 (heating bath)
  • Vertical glassware RV 10.10 with coating
  • RV 10.88 clamp (NS 29)
  • Steam tube RV 10.70 (NS 29/32)
  • Sealing gasket RV 10.8001
