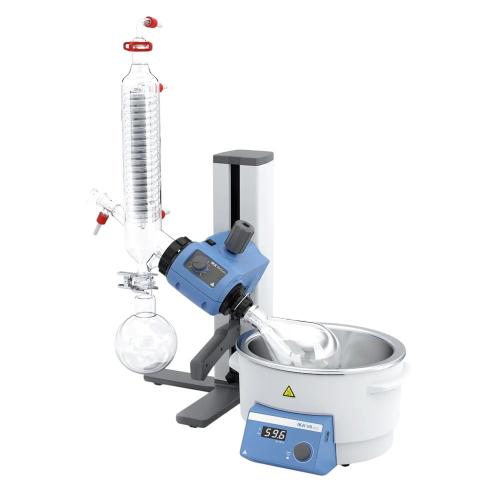

IKA RV 3 V: a compact and versatile rotary evaporator for a wide range of applications
The RV 3 V rotary evaporator from IKA is specially designed for users looking for a high-performance, intuitive solution for their everyday laboratory needs. This model stands out as the ideal option for teaching and research laboratories and industrial environments requiring a reliable, ergonomic device. With its 4-litre heating bath, it can reach temperatures of up to 99 °C, making it suitable for a wide variety of evaporation and distillation processes.
The RV 3 V is equipped with a highly efficient condenser with a cooling surface area of 1500 cm², ensuring optimum performance even under intensive working conditions. Specially designed glass guides promote efficient condensation while minimising the footprint of the device on the bench. Handling is simplified thanks to precise manual lifting and an adjustable immersion angle that allows the glassware to be easily positioned according to specific user requirements.
Safety and ergonomics are at the heart of the RV 3 V design. The vapour tube locking system is equipped with a red indicator that signals when the lock is open, ensuring safe use. The device is also equipped with a flask clamping mechanism with integrated release function for easy replacement of evaporation flasks without additional effort. The continuously adjustable speed control via a dial and the speed display allow precise control of the process, with a rotation range of 20 to 300 rpm.
With a low operating voltage (24V), the RV 3 V offers increased safety for the user while remaining compatible with all glassware in the IKA RV 10 range. Its compact dimensions and weight of 28.3 kg make it easy to integrate into confined spaces while maintaining exemplary robustness.
This model includes the RV 10.1 vertical glassware, the RV 10.70 vapour tube (NS 29/32) and the necessary sealing elements, making it a turnkey solution for laboratories looking to optimise their evaporation operations.
