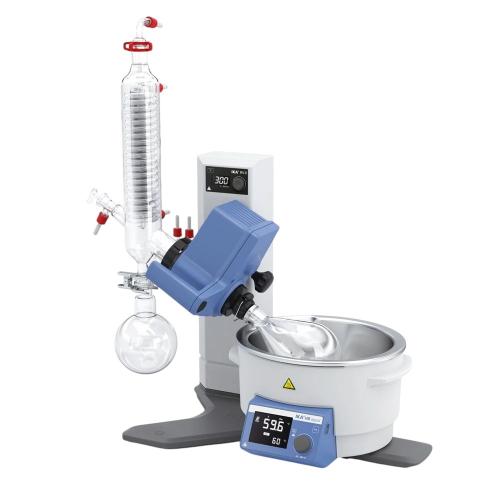

RV 8 V-C Rotary Evaporator - Brand New

The RV 8 V-C from IKA is a manual rotary evaporator designed for distillation applications in chemistry, biotechnology and pharmaceutical laboratories. Equipped with a specially coated vertical condenser and a high-performance heating bath, it ensures efficient and safe evaporation. Its digital display allows precise control of temperature and speed, while its ergonomic design with manual lifting simplifies handling for both right- and left-handed users. Compact and reliable, the RV 8 V-C is ideal for research, development and quality control.



Offer Details

Options :

IKA RV 8 V-C

The Offer Details are provided by the seller and automatically translated.

Description

IKA RV 8 V-C: a reliable rotary evaporator for your laboratory needs

The RV 8 V-C rotary evaporator from IKA is a versatile and robust solution for laboratories requiring a manual evaporation system. Designed to meet the requirements of the chemical, pharmaceutical and biotechnology sectors, this device is equally at home in research and development as it is in production and quality assurance. Thanks to its specially coated vertical condenser with optimised flow guidance, it makes full use of a cooling surface area of 1500 cm² for outstanding condensation efficiency even in confined spaces.

The device is equipped with a 4-litre heating bath that allows the use of water or oil according to user requirements. The digital display panel, protected by a glass window, offers excellent readability and allows the rotation speed and bath temperature to be viewed, ensuring optimal control of the distillation processes. A lock button ensures that the set temperature is maintained safely, while a red indicator signals when the vapour tube is unlocked, further enhancing safety during use.

The RV 8 V-C features an ergonomic manual lifting system that allows precise positioning of the glassware and easy one-handed operation, suitable for both right- and left-handed users. Its flask clamping mechanism with integrated release function facilitates quick changing of evaporation flasks. The immersion angle is also adjustable, offering additional flexibility for a wide range of applications.

Compact and lightweight, weighing 26 kg and measuring 615 x 595 x 390 mm, the RV 8 V-C fits easily into any laboratory environment. Its low-voltage power supply (24 V) ensures increased safety for the user. The device is compatible with the entire IKA RV 10 glassware range, making it a scalable and adaptable solution.

The RV 8 V-C comes ready to use with a Woulff bottle, a vapour tube and suitable clamps. Its robust construction and integrated safety features make it an ideal choice for a wide range of applications requiring reliability and precision.

Features

  • 4-litre water/oil heating bath with carrying handles
  • Vertical condenser with 1500 cm² cooling surface
  • Digital display protected by glass, readable in black and white
  • Heating bath temperature lock button
  • Locking mechanism with red indicator for the steam tube
  • Ergonomic manual lifting for right- and left-handed users
  • Precise adjustment of immersion angle
  • Balloon clamping mechanism with integrated release function
  • Extended speed range for high flexibility of use
  • Low voltage power supply (24 V) for increased safety
  • Compatible with the complete range of IKA RV 10 glassware

Technical Details

  • Speed range: 5 - 300 rpm
  • Speed display: LED
  • Speed tolerance (< 100 rpm): ±1 rpm
  • Speed tolerance (< 100 rpm): ±1%
  • Lifting type: manual
  • Lifting stroke: 120 mm
  • Dimensions (W x H x D): 615 x 595 x 390 mm
  • Weight: 26.07 kg
  • Permissible ambient temperature: 5 - 40 °C
  • Permissible relative humidity: 80%
  • Protection class according to DIN EN 60529: IP 20
  • Voltage: 100 - 240 V
  • Frequency: 50/60 Hz
  • Power consumption: 75 W

Compatible Accessories

  • Vertical coated glassware RV 10.10
  • RV 10.88 NS 29 clamp
  • RV 10.70 vapour tube (NS 29/32)
  • Sealing gasket RV 10.8001
  • Woulff bottle RV 3.4
