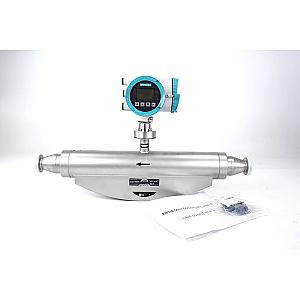

SITRANS FC330 Digital Flow Meter - Perfect Condition

The SITRANS FC330 is a state-of-the-art digital Coriolis flow meter designed to maximise the efficiency of liquid and gas processes. This flow measurement system offers exceptional accuracy and reliability, while being compact and easy to use. Ideal for direct integration into DCS automation systems via Profibus 4.0, Modbus, HART 7.2 or as a stand-alone solution, the SITRANS FC330 is perfect for demanding industrial applications. With sizes available from DN15 to DN150 and accuracy of ±0.10% or ±0.20%, this flow meter is an optimal choice for environments requiring high performance and simplified maintenance.



Description

SITRANS FC330: The Digital Coriolis Flow Meter for Accurate and Reliable Flow Measurement

The SITRANS FC330 is a digital Coriolis flow measurement system designed to improve productivity by increasing the efficiency of every process involving liquids and gases. This state-of-the-art flow meter stands out for its exceptional accuracy and reliability, while being compact and  easy to use. It is ideal for direct integration into DCS automation systems via Profibus 4.0, Modbus, HART 7.2 or as a stand-alone solution.

The SITRANS FC330 consists of a SITRANS FCS300 sensor and a SITRANS FCT030 transmitter, offering a complete solution for flow measurement. This system is designed to meet the requirements of the most demanding industrial environments, with sizes available from DN15 to DN150 and an accuracy of ±0.10% or ±0.20%. The repeatability of  ±0.05% ensures consistent and reliable measurements, while the density accuracy of 2 or 10 kg/m³ ensures accurate results for a wide range of applications.

The SITRANS FC330 is also equipped with features such as aerated flow filtering, high-speed data logging, diagnostics, dosing and fractioning. These features make it an ideal choice for applications requiring precise process monitoring and control. In addition, the SITRANS FC330 complies with EHEDG hygiene standards for sizes DN 25-80, making it suitable for applications in the food and pharmaceutical industries.

The SITRANS FC330 is designed for easy installation and maintenance. Its compact design allows for easy integration into existing systems, while its remote configuration provides additional flexibility for transmitter location. The transmitter is equipped with a graphic display with multilingual support, facilitating process configuration and monitoring.

The SITRANS FC330 is a state-of-the-art digital Coriolis flow meter, offering exceptional accuracy and reliability for a wide range of industrial applications. Its compact design, features and compliance with hygienic standards make it an optimal choice for demanding environments.

Features

  • Direct integration: In DCS automation systems via Profibus 4.0, Modbus, HART 7.2 or as a stand-alone solution
  • Space-saving: Compact sensor design with remote installation option for optimal transmitter location
  • All information at your fingertips: Full removable memory functions (SensorFlash® microSD card)
  • Calibration certificates
  • Pressure and material test certificates (on request)
  • Non-volatile backup of operational data
  • Transfer of user configuration to other flow meters
  • Data logging functionality
  • Approved for hygiene: EHEDG-approved hygienic sensor for sizes DN 25-80; external cleanability, couplings
  • Global service network: For expert support whenever and wherever you need it

Technical Details

  • Available sizes: DN15 (½"), DN25 (1"), DN50 (2"), DN80 (3"), DN100 (4"), DN150 (6")
  • Accuracy: ±0.10% or ±0.20%
  • Repeatability: ±0.05%
  • Density accuracy: 2 or 10 kg/m³
  • Flow rate range:
    • DN15: 8,000 kg/h (17,600 lb/h)
    • DN25: 35,000 kg/h (77,000 lb/h)
    • DN50: 90,000 kg/h (198,000 lb/h)
    • DN80: 250,000 kg/h (550,000 lb/h)
    • DN100: 520,000 kg/h (1,146,404 lb/h)
    • DN150: 860,000 kg/h (1,895,975 lb/h)
  • Material: Wetted parts: 316L stainless steel, nickel alloy C4 (2.4610) or nickel alloy C22 (2.4602)
  • Housing: Stainless steel 304L
  • Pressure rating: All sizes: 100 bar (1,450 psi)
  • Temperature rating: All sizes: -50 … 205 °C (-58 … 400 °F)
  • Sensor housing classification: IP67 (NEMA 4X)
  • Approvals:
    • Hazardous areas: ATEX, IECEx, cCSAus
    • Hygienic (DN 25-80): EHEDG
  • Configuration: Compact or remote
  • Communication: Profibus DP/PA, Modbus RS485, HART
  • I/O: Up to 4 channels combining analogue, relay or digital outputs and one binary input
  • HMI: HMI with multilingual support
  • Power supply: AC/DC auto-switching; automatically detects supply voltage
  • Special features: Air flow filtering, high-speed data logging, diagnostics, dosing and fractioning

Compatible Accessories

Cables:

  • 5 m (16.4 ft), sensor cable, 4-wire, with 2 pieces of M12 connectors mounted
  • 5 m (16.4 ft), sensor cable, 4-wire, without connectors for terminal connection
  • 10 m (32.8 ft), sensor cable, 4-wire, with 2 pieces of M12 connectors mounted
  • 10 m (32.8 ft), sensor cable, 4-wire, without connectors for terminal connection
  • 25 m (82 ft), sensor cable, 4-wire, with 2 M12 connectors mounted
  • 25 m (82 ft), sensor cable, 4-wire, without connectors for terminal connection
  • 50 m (164 ft), sensor cable, 4-wire, with 2 M12 connectors mounted
  • 50 m (164 ft), sensor cable, 4-wire, without connectors for terminal connection
  • 75 m (246 ft), sensor cable, 4-wire, with 2 M12 connectors mounted
  • 75 m (246 ft), sensor cable, 4-wire, without connectors for terminal connection

Sensor options:

  • FCS300 marine approval
  • SD card accessibility via USB
  • Mass storage enabled
