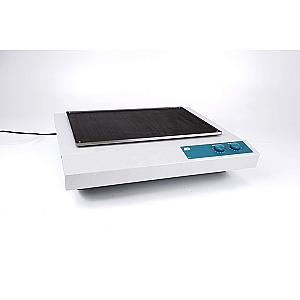

SM 30 B horizontal agitator

The SM 30 B horizontal stirrer from Edmund Bühler is designed for high loads of up to 30 kg and for mixing difficult media. It offers a wide variety of rack systems for securing different types of containers, ensuring versatile and efficient use in laboratories.



Description

The SM 30 B: A Versatile Stirrer for Modern Laboratories

The SM 30 B horizontal shaker from Edmund Bühler is a robust and versatile piece of laboratory equipment, specially designed to meet the needs of demanding research environments. With an impressive load capacity of 30 kg, this shaker is ideal for mixing difficult media, whether chemical solutions, suspensions or cell cultures. Its horizontal design and reciprocating motion ensure homogeneous and efficient mixing, essential for accurate and reproducible results.

The SM 30 B stands out for its flexibility thanks to a wide range of compatible rack systems. These systems allow a variety of containers to be secured, such as Erlenmeyer flasks, decanting ampoules, test tube holders and much more. This versatility makes it an indispensable tool for many applications, from molecular biology to analytical chemistry.

The shaker is equipped with a generously sized shaking platform (560 x 400 mm), providing enough space to accommodate several containers simultaneously. The shaking speed is continuously adjustable between 15 and 300 rpm, allowing precise adaptation to the specific requirements of each experiment. In addition, the shaking stroke can be adjusted to 30 mm, with options available for 46 mm or 50 mm, offering even more flexibility.

The SM 30 B also features a built-in timer, allowing mixing cycles of up to 120 minutes to be programmed or continuous operation. This feature is particularly useful for experiments requiring prolonged or repeated mixing. The device is designed for ease of use, with intuitive controls and an ergonomic design, ensuring safe and efficient handling.

In terms of technical specifications, the SM 30 B stirrer complies with the highest standards. It is powered by 230 V or 115 V (50/60 Hz) and has IP 21 enclosure protection, ensuring optimum safety and durability. The device emits a low amount of heat (approx. 7W), which minimises the risk of overheating and extends its service life. It can operate in an ambient temperature range of 5°C to 50°C and at relative humidity of up to 85%, making it suitable for a wide variety of laboratory environments.

The SM 30 B horizontal shaker from Edmund Bühler is a high-quality piece of laboratory equipment, offering a unique combination of robustness, versatility and precision. Whether you are a biology researcher, an analytical chemist or a research professional in another field, this shaker is a reliable choice to meet your mixing needs.




Features

  • Horizontal reciprocating motion for homogeneous mixing.
  • High load capacity (30 kg) for intensive applications.
  • Spacious shaking platform (560 x 400 mm) to accommodate multiple containers.
  • Adjustable shaking speed (15 to 300 rpm) for precise adaptation.
  • Adjustable shaking stroke (30 mm, with options for 46 mm or 50 mm).
  • Integrated timer for programmable mixing cycles (up to 120 minutes or continuous).
  • Compatible with a wide range of rack systems for securing different types of containers.
  • Intuitive controls and ergonomic design for easy and safe use.
  • Compliance with safety standards with IP 21 enclosure protection.


Technical Details

  • Power supply: 230 V or 115 V, 50/60 Hz (to be specified when ordering)
  • Enclosure protection: IP 21
  • Heat emission: approx. 7W
  • Ambient temperature: 5°C to 50°C
  • Relative humidity: up to 85%
  • Dimensions (W x D x H): 680 x 610 x 160 mm
  • Weight: 33 kg
  • Shaking platform: 560 x 400 mm
  • Maximum load: 30 kg
  • Shaking speed: 15 to 300 rpm, continuously adjustable
  • Shaking stroke: 30 mm (options: 46 mm or 50 mm)
  • Timer: 0 to 120 minutes / continuous


Compatible Accessories

  • Combifix SM A rack system
  • Combifix SM B rack system
  • Combifix SM C rack system
  • SM universal tray
  • SM two-tier upper frame
  • Incubator cover TH 30
