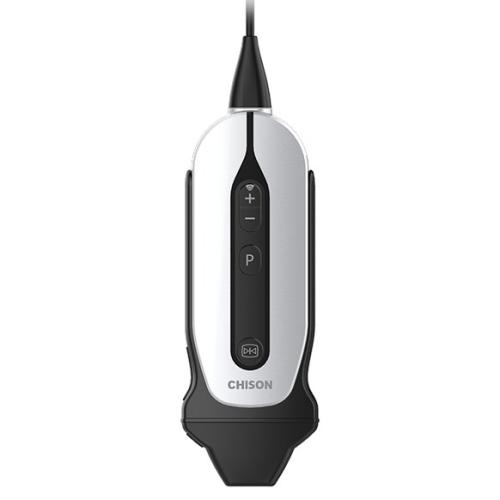

SonoEye P3 Ultrasound Scanner - Brand New 2023

The SonoEye P3 from Chison is an ultra-compact portable ultrasound scanner that combines performance and mobility to meet the needs of healthcare professionals in hospitals and emergency situations. Designed for cardiac, abdominal and pulmonary applications, it offers remarkable image quality thanks to an electronic phased array transducer and multiple imaging modes. Its light weight, battery life and storage capabilities facilitate quick and efficient use at the patient's bedside or on the go, while ensuring reliable diagnosis.



Offer Details

Accessories :

Chison Phased Array Transducer

Options :

Auto EF, DICOM, Pneumonia Measurement Pkg.

The Offer Details are provided by the seller and automatically translated.

Description

Chison SonoEye P3: a versatile and powerful portable ultrasound scanner

The SonoEye P3 from Chison is a medical imaging solution that combines the technology of a high-end ultrasound scanner with the convenience of a handheld device. Designed for healthcare professionals who need a reliable and easily transportable tool, the SonoEye P3 stands out for its compact size and ergonomic design, which is perfectly suited to hospital environments, home consultations and emergency interventions. Measuring just 64 mm wide, 173 mm long and 24 mm thick, it can be held in one hand and is easy to use thanks to its intuitive interface.

This device incorporates a phased array probe operating in a frequency range of 2.5 to 4.0 MHz, suitable for cardiac, abdominal and pulmonary examinations. The various imaging modes available, such as B, B/M, C and PW modes, allow for comprehensive exploration and accurate diagnosis, even in complex situations. Duplex mode allows two types of images to be viewed simultaneously, optimising real-time analysis.

The SonoEye P3 is designed to deliver optimal image quality thanks to sophisticated features such as 256-level adjustable gain, 8-segment TGC control and a powerful zoom. It can achieve a maximum examination depth of 22.7 cm depending on the probe used, making it suitable for a wide variety of patients and clinical settings.

In terms of connectivity, the SonoEye P3 stands out with its compatibility with mobile devices via a Type-C connection, enabling simplified data sharing and management. Still image and cine loop storage is supported in common formats such as PNG and MP4, offering flexibility for data archiving and transfer. The integrated EasyView software facilitates review and management of examinations, with quick search and export options.

In addition to standard features, the SonoEye P3 offers specialised software options for lung analysis and a variety of clinical measurement packages for vascular, abdominal and cardiac applications. These analysis tools enhance diagnostic capabilities and adapt to the needs of practitioners.

Compact and robust, the SonoEye P3 is also designed to operate in a variety of environmental conditions, with an operating temperature range of 10°C to 38°C and relative humidity resistance between 30% and 75%. For transport, it can be stored at temperatures between -10°C and 50°C, ensuring excellent durability.

The SonoEye P3 offers several optional accessories to improve its ergonomics and portability, including carrying bags, tablet holders and sterile covers. These items complete the offering, allowing it to be adapted to all clinical environments.

Features

  • Electronic phased array probe for cardiac, abdominal and pulmonary applications
  • Intuitive interface compatible with mobile devices
  • Precise gain adjustment (256 levels) and 8-segment TGC control
  • High-performance zoom and 16-level focus
  • Duplex mode for simultaneous display of multiple image types
  • Fast data storage and easy export
  • EasyView software for exam and image management
  • Software options for lung analysis and specialised measurements
  • Multi-language (English, Chinese, German, and others on request)
  • Reliable operation in a variety of clinical environments


Technical Details

  • Main module dimensions: 64 mm (width) x 173 mm (length) x 24 mm (thickness)
  • Power supply: DC 5V
  • Power consumption: ≤10VA
  • P3 probe frequency range: 2.5 – 4.0 MHz
  • Imaging modes: B Mode, B/M Mode, C Mode, PW Mode
  • Maximum examination depth: up to 22.7 cm
  • Connection: Type-C
  • Operating conditions: temperature 10°C to 38°C, relative humidity 30% to 75%
  • Export formats: PNG (still images), MP4 (cine loops)

Compatible Accessories

  • BA01: arm bag
  • BA02: belt bag (includes a bag for the SonoEye and one for a mobile phone)
  • BA03: shoulder bag
  • CS01: carrying case
  • CS02: metal transport case
  • CS03: case for two systems
  • SD01: tablet holder
  • CV01: sterile cover for the probe
  • GL01: sterile ultrasound gel
