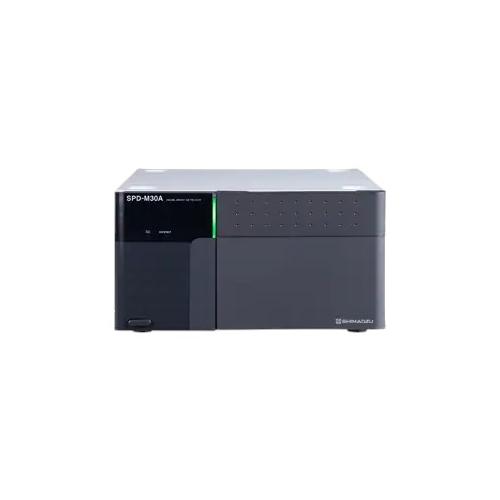

SPD-M30A Diode Array Detector - Fair Condition

The SPD-M30A from Shimadzu is a highly flexible and high-performance diode array detector (PDA) designed for fast UHPLC applications and USP-compliant analyses. Thanks to minimal dispersion and an optimised capillary cell, it offers increased sensitivity for accurate compound identification, impurity control and peak purity analysis. Its stray light compensation technology and advanced optical system ensure reliable results, even at trace levels. It is ideal for laboratories requiring simultaneous multi-wavelength detection and exceptional spectral resolution.

Offer Details

Options :

Shimadzu SPD-M30A

The Offer Details are provided by the seller and automatically translated.

Description

Shimadzu SPD-M30A: the benchmark for diode array detectors for chromatographic analysis

The Shimadzu SPD-M30A is the go-to solution for labs that need super-sensitive detection and top-notch analytical performance. This diode array detector was designed to meet the needs of fast UHPLC separations while keeping accuracy and reliability at an exceptional level. Thanks to a state-of-the-art capillary cell and optimised optical system, it guarantees minimal dispersion and significantly reduced noise, enabling accurate analysis of compounds at extremely low concentration levels.

Featuring a network of 1024 diodes with a spectral resolution of 0.5 nm per element and a wavelength accuracy of ±1 nm, the SPD-M30A ensures accurate compound identification through detailed absorbance spectra. This capability also allows peak purity checks and the identification of potential impurities, which is essential for pharmaceutical applications and rigorous quality control.

Integrated stray light compensation technology and precise flow temperature control contribute to increased measurement stability and accuracy. The system also offers maximum flexibility thanks to its multi-wavelength capabilities, allowing up to four channels to be monitored simultaneously. This gives the SPD-M30A the ability to function as a high-performance multi-wavelength UV detector, suitable for complex analyses where multiple compounds need to be monitored in parallel.

The detector is ideally suited for USP-compliant analogue testing thanks to its four-channel analogue outputs, which can be used, for example, to trigger a fraction collector. The standard flow cell offers an optical length of 10 mm for a volume of 1 µL and supports a maximum pressure of 8 MPa, while an optional high-sensitivity cell (85 mm, 9 µL) is available for applications requiring even finer detection.

In terms of connectivity and control, the SPD-M30A can be operated via a web browser or through various chromatography and LC-MS/MS software packages, ensuring seamless integration into the existing analytical environment. It also benefits from the industry's most powerful deconvolution algorithms, enabling effective resolution of co-eluting peaks, a major advantage in the analysis of complex samples.

With all these features, the Shimadzu SPD-M30A is the solution of choice for laboratories seeking speed, accuracy and versatility in their chromatographic analyses.


Features

  • Minimal dispersion for fast UHPLC separations
  • Stray light compensation technology for accurate analysis
  • Simultaneous multi-wavelength detection (up to 4 channels)
  • High-performance deconvolution algorithms to resolve co-eluting peaks
  • Capillary cells optimised for highly sensitive trace analysis
  • Noise reduction thanks to a sophisticated optical system
  • Compatible with USP-compliant tests
  • Flexible monitoring and control via software and web interfaces
  • Ability to identify and quantify compounds at trace levels
  • Ideal for peak purity analysis and impurity control

Technical Details

  • A 1024-element grating with a resolution of 0.5 nm per element
  • Spectral resolution: < 1.4 nm
  • Wavelength range: 190 to 700 nm
  • Wavelength accuracy: ±1 nm (with D2 deuterium lamp)
  • Baseline drift: < 0.5 x 10⁻³ AU/h (under specified conditions)
  • Noise level: < 0.4 x 10⁻⁶ AU (under specific conditions)
  • Standard cell: optical length 10 mm, volume 1 µL, maximum pressure 8 MPa (80 bar)
  • Optional high-sensitivity cell: optical length 85 mm, volume 9 µL
  • Analogue outputs: 4 channels for triggering a fraction collector
  • Control and monitoring via web browser and compatible HPLC/LC-MS/MS software

Compatible Accessories

  • High-sensitivity cell 85 mm / 9 µL
  • Maintenance kits for D2 deuterium lamp
  • Replacement capillaries for standard cell
  • Fraction collector compatible with 4-channel analogue outputs
  • Shimadzu HPLC and LC-MS/MS software for full integration
  • Mounting bracket and network connection modules
