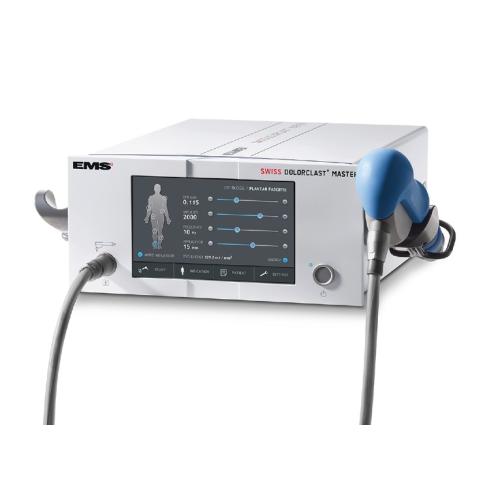

Swiss DolorClast Master FT-217 Radial Therapy Device - Fair Condition

The Swiss DolorClast® Master FT-217 is an innovative medical device designed for the effective treatment of musculoskeletal conditions using extracorporeal shock wave therapy (ESWT). Thanks to its pneumatic technology with external compressor, it delivers a constant, high energy density via its Evo Blue® and Power+ handpieces . Easy to use, it offers predefined protocols, accurate energy display and integrated patient monitoring. This comprehensive system is ideal for healthcare professionals seeking a fast, reliable and documented solution to relieve pain and improve mobility in their patients.



Offer Details

Options :

EMS SWISS DOLORCLAST MASTER FT-217 With Handpiece FR-119A - (Année 2019)

The Offer Details are provided by the seller and automatically translated.

Description

Swiss DolorClast® Master FT-217 – Radial shock wave therapy

The Swiss DolorClast® Master FT-217 is a cutting-edge solution developed by EMS (Electro Medical Systems) for extracorporeal radial shock wave therapy (Radial ESWT). This device is designed to effectively treat a wide range of musculoskeletal conditions, such as plantar fasciitis, tendinopathies, myofascial pain and many other chronic or acute conditions.

Featuring pneumatic technology with an external compressor, the DolorClast® Master generates mechanical shock waves that are transmitted directly to the targeted tissues. These pulses promote cell regeneration, stimulate blood circulation and reduce inflammation, thereby contributing to faster and more lasting recovery.

The system is equipped with two handpieces:

  • Evo Blue®, which delivers a constant energy density of up to 0.18 mJ/mm².
  • Power+, which allows for a higher density of up to 0.4 mJ/mm², ideal for cases requiring increased intensity.

The user interface is intuitive thanks to a colour touchscreen, allowing smooth navigation between the 17 predefined protocols and manual settings. The practitioner can adjust the frequency (up to 20 Hz), pressure (1.5 to 4 bar), and number of pulses (up to 10,000), with real-time visualisation of the energy delivered.

The DolorClast® Master also includes a clinical tracking system with up to 3,000 patient records, including treatment history and a visual analogue scale (VAS) for pain assessment. Treatment images and videos are available to inform patients and improve their understanding of the therapeutic process.

This device is supported by more than 125 scientific publications and 26 randomised clinical trials, attesting to its efficacy and safety. It complies with European standards (93/42 EEC – Class IIb) and electrical safety standards (EN 60601-1). Compact and mobile, the DolorClast® Master can be easily installed in any medical environment.

Features

  • 17 predefined protocols with recommended settings
  • Integrated pressure/energy converter
  • Pain monitoring via the VAS scale
  • Up to 3,000 patient files with automatic history
  • Comprehensive treatment guide with anatomical and clinical definitions
  • Real-time energy output display
  • Automatic recognition of the Evo Blue® handpiece
  • USB port for software updates and data export
  • Password option for enhanced security

Technical Details

  • Technology: Pneumatic radial ESWT therapy with external compressor
  • Energy density:
    • Evo Blue®: up to 0.18 mJ/mm²
    • Power+: up to 0.4 mJ/mm²
  • Frequency: 1 to 20 Hz (increments of 1 Hz)
  • Air pressure: 1.5 to 4 bar (increments of 0.1 bar)
  • Impulses: 500 to 10,000 (increments of 500)
  • Display: Colour touchscreen
  • Dimensions: H 135 mm x W 395 mm x D 365 mm
  • Weight: approx. 6.4 kg (unit only)
  • Power supply: 100–240 VAC | 50–60 Hz
  • Operating conditions: +10°C to +40°C, relative humidity 30% to 75%
  • Storage conditions: -10°C to +40°C, relative humidity 10% to 95%
  • Air supply: 5–6 bar, 30 Nl/min at 4 bar
  • Classification: Class IIb according to 93/42 EEC, Class I according to EN 60601-1

Compatible Accessories

  • Evo Blue® handpiece
  • Contact gel
  • Trolley with bottle holder and cable support
  • Oil compressor
  • USB
  • Air cord, tubes, manuals
  • Power+ handpiece
  • Carrying case
  • Oil-free compressor
  • Foot control
