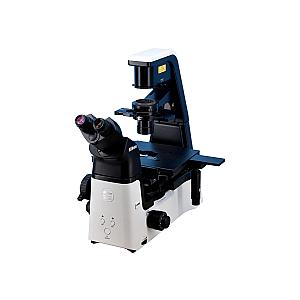

Nikon ECLIPSE Ts2R-FL inverted research microscope: optical performance and ergonomics in a compact format
The Nikon ECLIPSE Ts2R-FL is an inverted research microscope that combines high optical performance, cutting-edge ergonomics and versatility for the most demanding applications in life science research. Designed to adapt to the constraints of modern laboratories, this model stands out for its compact size, intuitive design and imaging excellence in both transmitted light and fluorescence.
The Ts2R-FL features a high-intensity Eco LED illumination system coupled with a fly-eye lens, ensuring uniform illumination across the entire field of view. This technology enables clear and sharp observations in various modes such as phase contrast, NAMC modulated contrast, Emboss contrast, multi-channel fluorescence and mitotic spindle observation. The LED system used eliminates harmful UV radiation, thereby prolonging cell viability during prolonged observations.
The microscope offers improved ergonomics with a stage height that is 30% lower than previous models, reducing user fatigue during repeated manipulations. The lateral location of the camera port and the possibility of reversing the eyepiece tube allow comfortable use even under a laminar flow hood. The user interface has been designed to optimise workflow: the control buttons are intuitively arranged according to the illumination mode used, facilitating quick transitions between different observation techniques.
The Ts2R-FL also stands out for its modularity. It is compatible with Nikon CFI60 objectives, renowned for their high numerical aperture and long working distance, allowing optimal visualisation of even thick samples. It accepts standard slides as well as culture dishes, Terasaki plates and haemocytometers, thanks to a wide range of suitable sample holders.
With four configurable epifluorescence channels and seven available wavelengths, the Ts2R-FL enables smooth and accurate multicolour observation. The Contrast Shield accessory improves signal quality by blocking ambient light, ensuring high signal-to-noise ratio fluorescence observations even in brightly lit laboratories.
For applications requiring precise environmental control, the microscope is compatible with platinum incubators and hydraulic micromanipulators. The addition of a Nikon Digital Sight series digital camera system enables high-resolution image capture with direct processing on a PC or tablet via the USB 3.0 interface.
The Nikon Ts2R-FL is a powerful and flexible research tool that combines optical performance, ease of use and adaptability, perfectly suited to the needs of academic and industrial laboratories wishing to explore cellular structures in detail.
