Performance Range of the UN110 Model: Precision, Reliability and Ease of Control

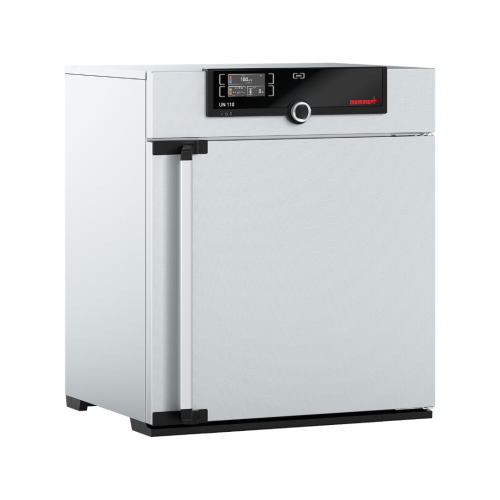

The Memmert UN110 is a laboratory oven designed to meet the most stringent requirements in the fields of quality control, scientific research and industrial testing. With an operating temperature range from +20 °C to +300 °C, this oven is ideal for drying, hardening materials, ageing tests, burn-in procedures and general drying. It uses natural convection to ensure even heat distribution, while the addition of preheated fresh air via an electronic flap ensures excellent thermal stability.
The 108-litre interior chamber is made of stainless steel with pressed ribs and features heating technology on all four sides for optimum temperature uniformity. It can accommodate up to five shelf levels, with a maximum load capacity of 175 kg for the chamber and 20 kg per shelf. The exterior, also made of stainless steel, is covered with a robust and hygienic textured structure.
The ControlCOCKPIT control interface with high-definition colour TFT display makes programming easy and precise. The fully digital PID control system provides adaptive control of temperature, time and air valve position parameters. An integrated timer allows cycles to be set from 1 minute to 99 days, and the SetpointWAIT function ensures that timing only starts once the target temperature has been reached.
Safety is a central pillar of the UN110. It features a dual safety system with an electronic over-temperature controller, a mechanical limiter (TB), and protection in accordance with DIN 12880. Integrated self-diagnostics allow for quick analysis of any malfunctions. In the event of a power failure, the current programme is stored in memory.
The model has a calibration certificate at +160 °C and two electropolished stainless steel shelves in a fully cleanable chamber. For those who want to go further in programming, the AtmoCONTROL software is available via Ethernet port, with a downloadable demo version. A USB stick containing this software is also available as an option.
With its compact dimensions (745 x 864 x 584 mm) and electrical power of 2800 W (230 V version), the UN110 oven fits easily into any laboratory environment, even in confined spaces. It complies with current safety standards and is manufactured in Germany, with particular attention to durability and material quality.
