X-ray OEC Fluorostar COMPACT - Excellent 2017

Advanced Medical Imaging System: OEC Fluorostar COMPACT

The OEC Fluorostar COMPACT is the result of advanced engineering, designed to meet the complex needs of modern medical imaging. This C-arm combines compactness with power, offering increased mobility without compromising on image quality. With its high-resolution CCD camera and 1k x 1k image processing, it produces exceptionally clear images essential for precise and effective procedures.

This system is specially optimized for use in various clinical fields such as urology, endoscopy, orthopedics, vascular and neurological procedures, intensive care, and emergency settings. Its lightweight design and reduced footprint make it an ideal choice for medical environments where space is limited, including medical offices, surgical centers, and endoscopy labs.

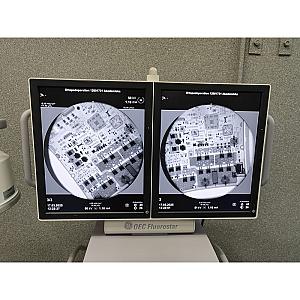

The user interface of the OEC Fluorostar COMPACT is intuitive and easy to use, based on a dual touchscreen that eliminates the need for bulky keyboards and mice. Color-coded brake controls simplify precise positioning of the C-arm, thereby facilitating workflow for healthcare professionals and improving working conditions.

In terms of connectivity, this system is equipped with built-in Wi-Fi, DICOM for image storage and sharing, and USB ports for fast data transfer. It can store up to 15,000 images and 86,000 cine images, ensuring efficient patient data management and enhanced collaboration among medical teams.

Dose management is a priority with the OEC Fluorostar COMPACT, offering multiple fluoroscopy modes tailored to different clinical applications. Optional laser pointers enable precise alignment, while preview collimation reduces radiation exposure. Pulsed and pediatric modes are available to further minimize doses while maintaining optimal image quality.

Advanced features include digital subtraction angiography (DSA), high-performance pulsed mode for dense anatomies, and a cine module for dynamic review of procedures in high definition. These characteristics make the OEC Fluorostar COMPACT an indispensable tool for practitioners looking to optimize patient care and improve operational efficiency in their medical practice.

In summary, the OEC Fluorostar COMPACT is an advanced medical imaging system characterized by its compactness and high performance. Designed for a wide range of clinical applications such as urology, endoscopy, and vascular procedures, it offers exceptional image quality with its high-resolution CCD camera and 1k x 1k image processing. Its intuitive user interface with dual touchscreen simplifies interaction, while advanced features like built-in Wi-Fi and DICOM facilitate image storage and sharing. With dose management options for optimal patient safety, the OEC Fluorostar COMPACT represents an essential tool for enhancing patient care and operational efficiency in modern medical environments.

Weight: Compact 285 kg (629 lbs)

Dimensions: Mainframe - Length: 163 cm (64 in), Height: 171 cm (68 in), Width: 79 cm (31 in)

C-arm:

• SID: 98 cm (38 in)
• Free space in arc: 76 cm (30 in)
• Depth in arc: 66 cm (26 in)
• Orbital rotation: 120° (90° underscan / 30° overscan)
• Lateral rotation: 450° (+225°/-225°)
• Lateral height: 106 cm (42 in)
• Wig/wag: 20° (+10°/-10°)
• Horizontal travel: 20 cm (8 in)
• Vertical travel: 43 cm (17 in)

Monitor Cart:

• Height: 167 cm (66 in)
• Width: 82 cm (33 in)
• Depth: 60 cm (23.6 in)
• Weight: 77 kg (170 lbs)
• Monitor swivel: 180° (+90°/-90°)
• Monitor tilt motion: 9° (+4.5°/-4.5°)

Power:

• Input power (60 Hz or 50 Hz): 100V/110V/120V @ 13A, 200V/210V/220V/230V/240V @ 8A

Operating Range: Temperature: 10° to 40°C, Humidity: 20%-80% non-condensing
